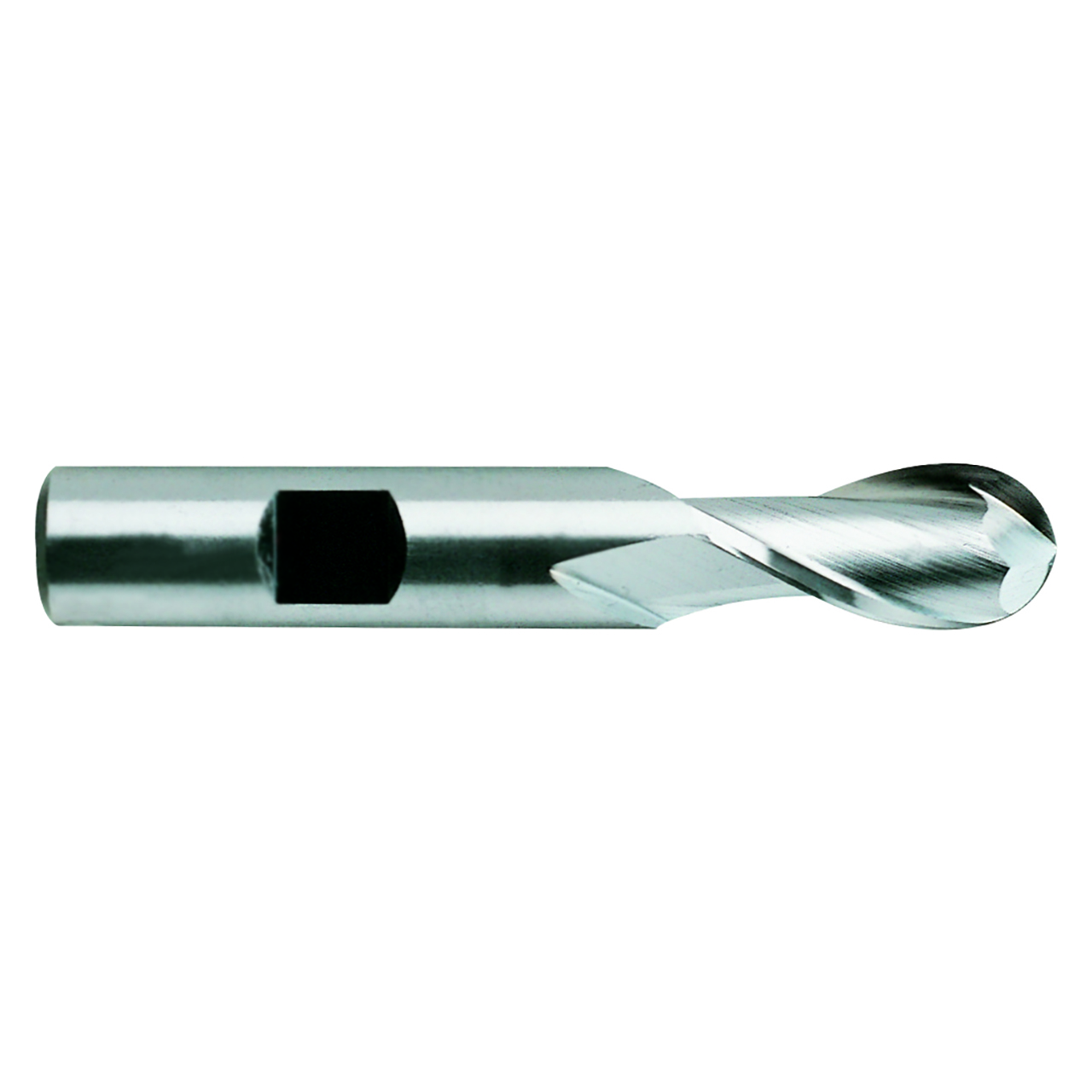

Product Specifications
| EDP Number | 42293 |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 2.6875" |
| Overall Length (Inch) | 2-11/16" |
| Overall Length (mm) | 68.26mm |
| Ball Nose Radius (Decimal Inch) | 0.0938" |
| Ball Nose Radius (mm) | 2.38mm |
| Series | E2111 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 3/32" |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/16";Mill Diameter (Decimal Inch)=0.1875""
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
1/2";Length of Cut (Decimal Inch)=0.5000""
Length of Cut (mm):
12.70mm
Material:
HSSCo8
Shank Type:
Flat
Overall Length (Inch):
2-11/16";Overall Length (Decimal Inch)=2.6875""
Overall Length (mm):
68.26mm
Shank Diameter (Inch):
3/8";Shank Diameter (Decimal Inch)=0.3750""
Shank Diameter (mm):
9.53mm
Finish/Coating:
Bright
Cutting Direction:
HSSCo8 & HSS 2 Flute Extended Length Ball Nose
Helix Angle:
30 Degree
