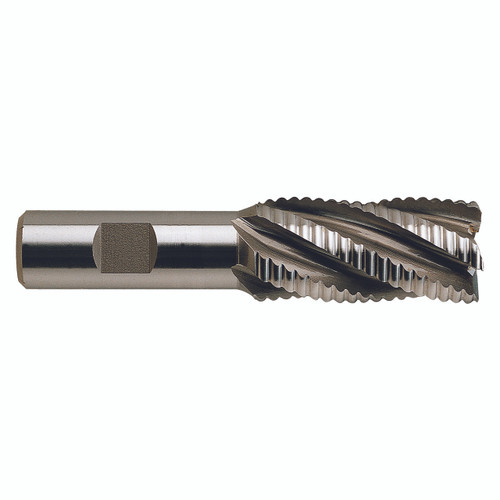

Product Specifications
| EDP Number | 4328 |
| Diameter (Decimal Inch) | 0.5625" |
| Diameter (Inch) | 9/16" |
| Diameter (mm) | 14.29mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 3.3750" |
| Overall Length (Inch) | 3-3/8" |
| Overall Length (mm) | 85.73mm |
| Series | E2031 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Coating | Bright |
| Cut Type | End Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
9/16"
Mill Diameter (Decimal Inch):
0.5625"
Mill Diameter (mm):
14.29mm
Number of Flutes:
4
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Shank Type:
Flat
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Application:
End Cutting
Overall Length (Inch):
3-3/8"
Overall Length (Decimal Inch):
3.3750"
Overall Length (mm):
85.73mm
Helix Angle:
30 Degree
