| Manufacturer Part Number | 43297CE |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 2.4375" |
| Overall Length (Inch) | 2-7/16" |
| Overall Length (mm) | 61.91mm |
| Ball Nose Radius (Decimal Inch) | 0.1250" |
| Ball Nose Radius (mm) | 3.18mm |
| Series | E2020 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Ball Nose Radius (Inch) | 1/8" |
| Coating | TiAIN E |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

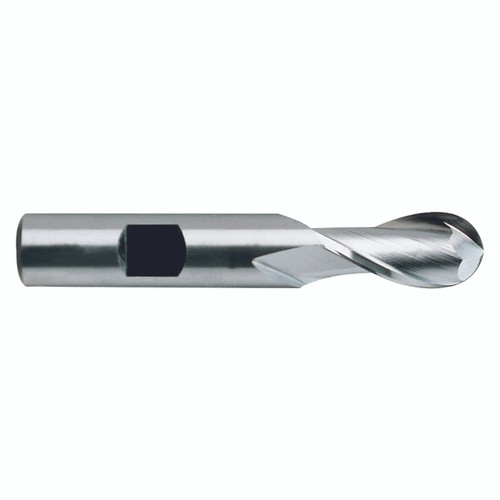

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
