Product Specifications

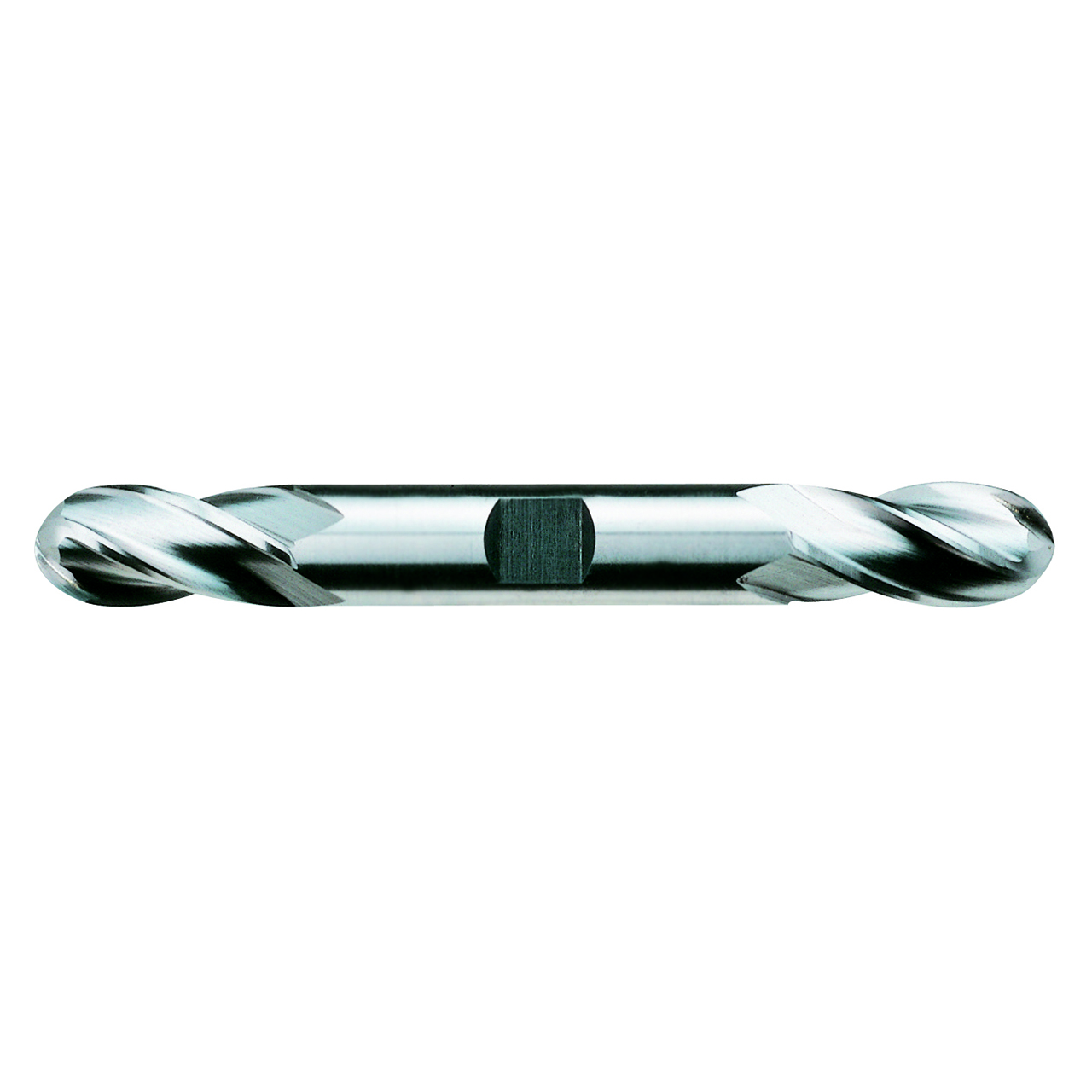

| EDP Number | 46313 |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (Inch) | 7/16" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 4.1250" |
| Overall Length (Inch) | 4-1/8" |
| Overall Length (mm) | 104.78mm |
| Ball Nose Radius (Decimal Inch) | 0.2188" |
| Ball Nose Radius (mm) | 5.56mm |
| Series | E2069 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Ball Nose Radius (Inch) | 7/32" |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
7/16"
Mill Diameter (Decimal Inch):
0.4375"
Mill Diameter (mm):
11.11mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Material:
HSSCo8
Shank Type:
Flat
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Overall Length (mm):
104.78mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
Bright
Cutting Direction:
HSSCo8 4 Flute Regular Length Ball Nose Double
Helix Angle (Degree):
30 Degree
