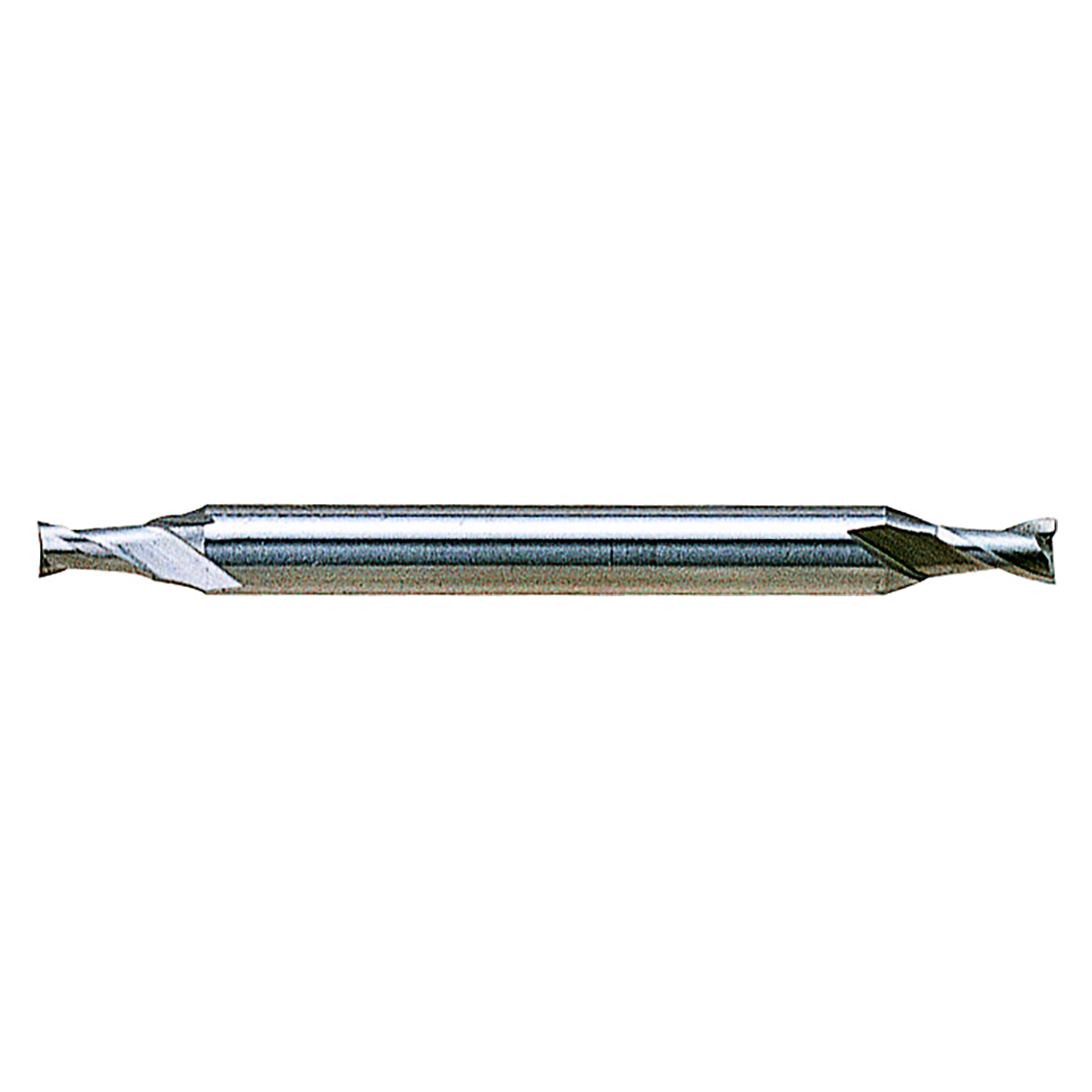

Product Specifications
| EDP Number | 49258CE |
| Diameter (Decimal Inch) | 0.0781" |
| Diameter (Inch) | 5/64" |
| Diameter (mm) | 1.98mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1250" |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Series | E2001 |
| Shank Style | Plain |
| Helix Angle | 39 Degree |
| Number of Flutes | 2 |
| Coating | TiAIN E |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mills |
| Application | P |
| Material | HSSCo8 |
