Product Specifications
| EDP Number | 50565 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5014 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

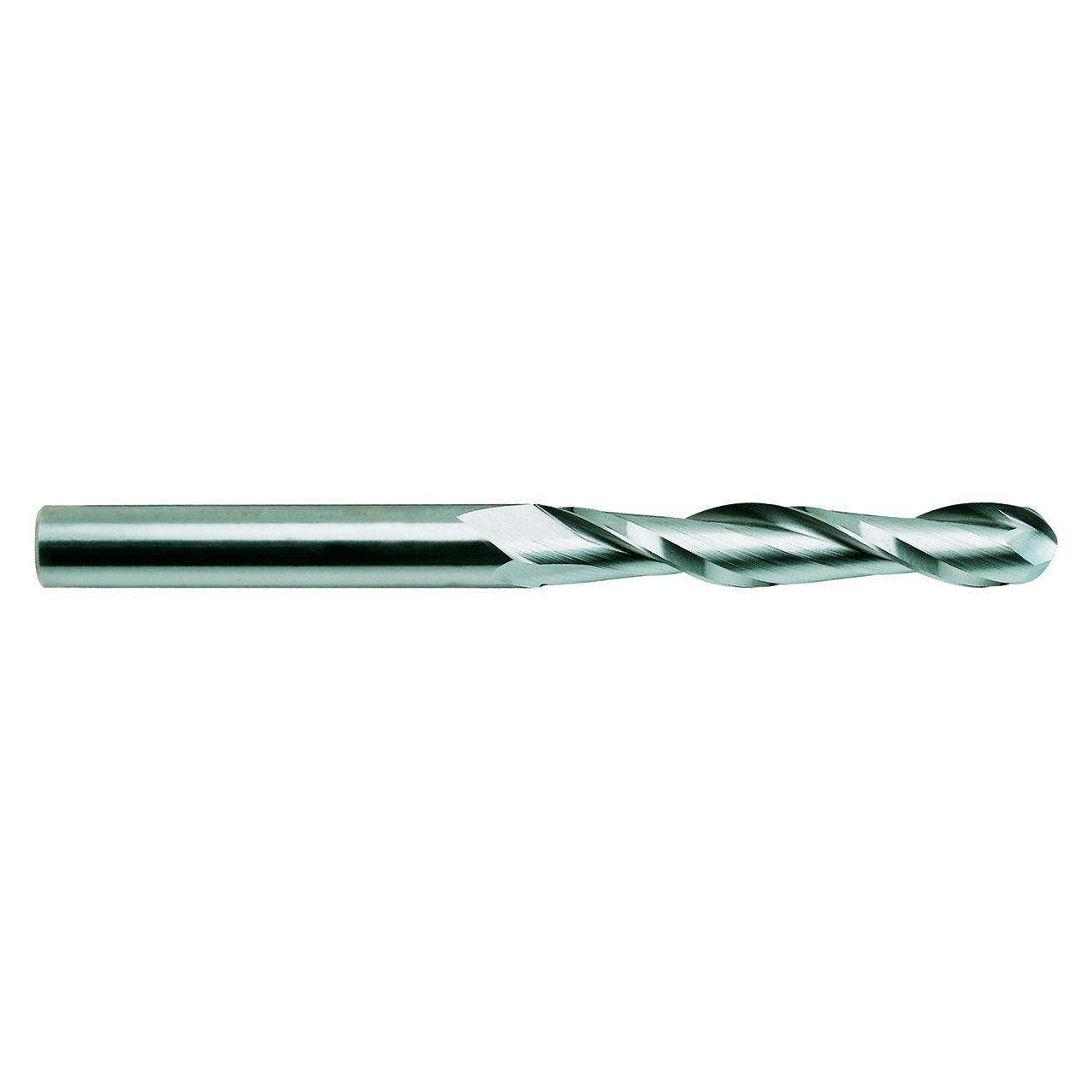

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1900"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Material:
Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Plain
Cutting Direction:
Right
Single or Double End:
Single
Helix Angle:
0
