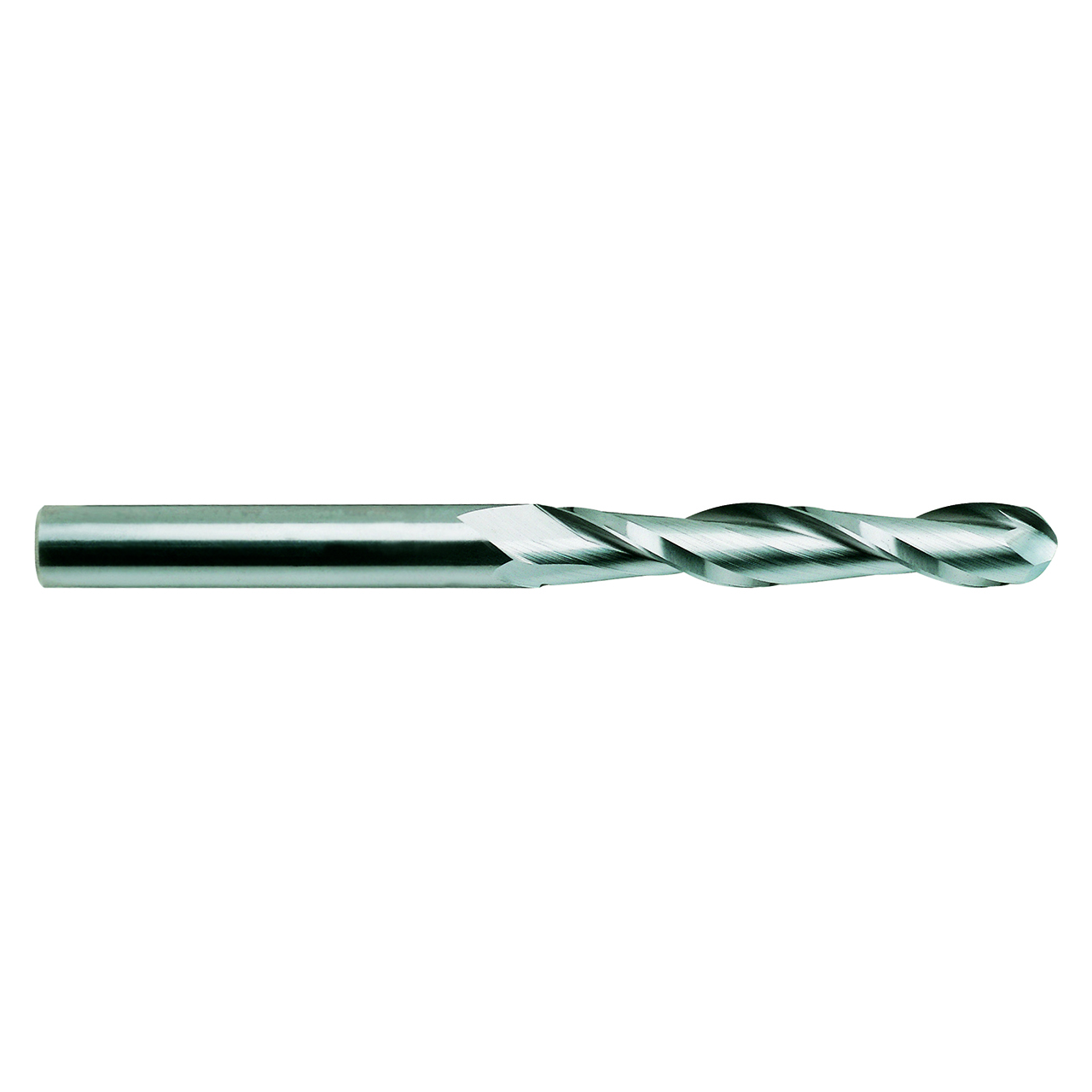

YG1 50579TC | 0.313" Diameter x 0.313" Shank x 1.125" LOC x 3.000" OAL 30 Degree Helix Angle 2 TiCN Coated Carbide Ball End Mill

$65.74 $44.70
(You save $21.04)
Brand:
YG1
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
2
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
TiCN
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25047597
UPC:
Weight:
0.10 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP Number50579TC
Diameter (Decimal Inch)0.3100"
Diameter (Inch)5/16"
Diameter (mm)7.94mm
Shank Diameter (Decimal Inch)0.3125"
Shank Diameter (Inch)5/16"
Shank Diameter (mm)7.94mm
Length of Cut (Decimal Inch)1.1250"
Length of Cut (Inch)1-1/8"
Length of Cut (mm)28.58mm
Overall Length (Decimal Inch)3.0000"
Overall-Length-(Inch)3"
Overall Length (mm)76.20mm
Helix Angle (Degree)30 Degree
Number of Flutes2
Cutting DirectionRight
ApplicationP
Shank StylePlain
SeriesE5014
CoatingTiCN
MaterialCarbide
Cut TypeCenter
End TypeSingle End
Product TypeBall End Mill
