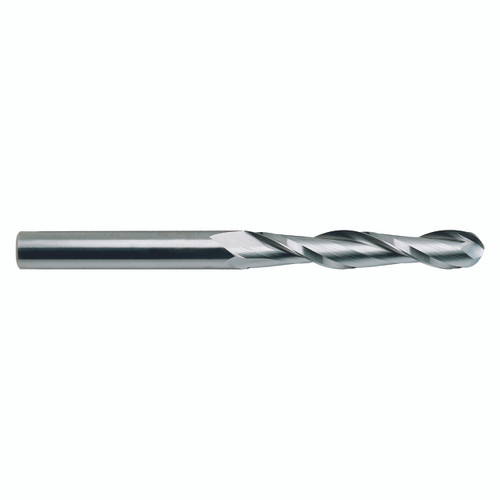

YG1 50584TF | 0.3800" Diameter x 0.3750" Shank x 1.1250" LOC x 3.0000" OAL 2 Flute YG-Tylon F Coated Carbide Ball End Mill

$45.26
SKU:
25047604
Weight:
0.15 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP Number50584TF
Diameter (Decimal Inch)0.3800"
Diameter (Inch)3/8"
Diameter (mm)9.53mm
Shank Diameter (Decimal Inch)0.3750"
Shank Diameter (Inch)3/8"
Shank Diameter (mm)9.53mm
Length of Cut (Decimal Inch)1.1250"
Length of Cut (Inch)1-1/8"
Length of Cut (mm)28.58mm
Overall Length (Decimal Inch)3.0000"
Overall-Length-(Inch)3"
Overall Length (mm)76.20mm
Helix Angle (Degree)30 Degree
Number of Flutes2
Cutting DirectionRight
ApplicationP
Shank StylePlain
SeriesE5014
CoatingYG-Tylon F
MaterialCarbide
Cut TypeCenter
End TypeSingle End
Product TypeBall End Mill
