Product Specifications
| EDP Number | 52579TN |
| Diameter (Decimal Inch) | 0.3100" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall-Length-(Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Ball Nose Radius (Inch) | 5/32" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | p |
| Shank Style | Plain |
| Series | E5018 |
| Coating | TiN |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

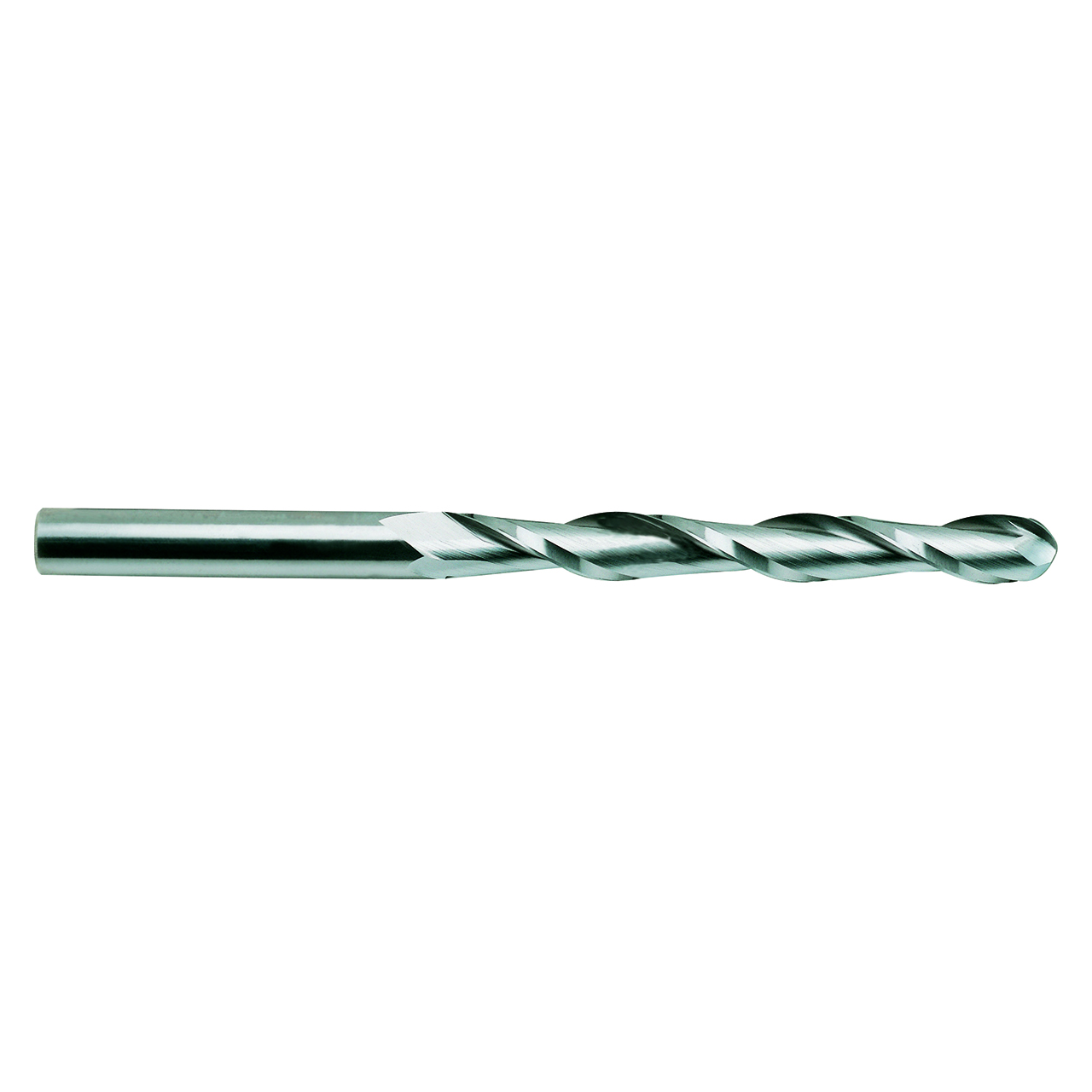

| Product Type | Ball End Mill |
