Product Specifications

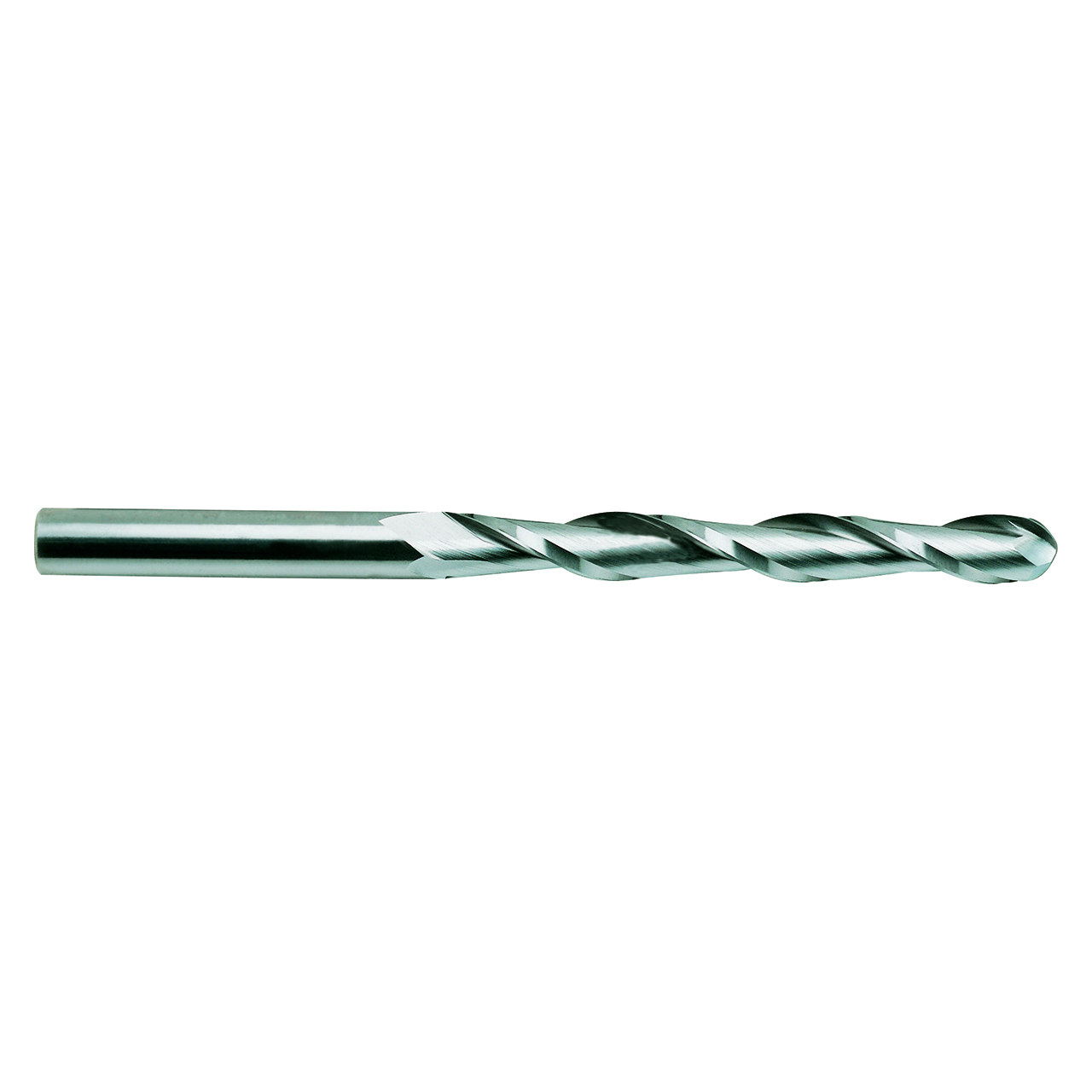

| EDP Number | 52598TF |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 3.0000" |
| Length of Cut (Inch) | 3" |
| Length of Cut (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall-Length-(Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Ball Nose Radius (Inch) | 3/8" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | p |
| Shank Style | Plain |
| Series | E5018 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |
| Product Type | Ball End Mill |
