Product Specifications

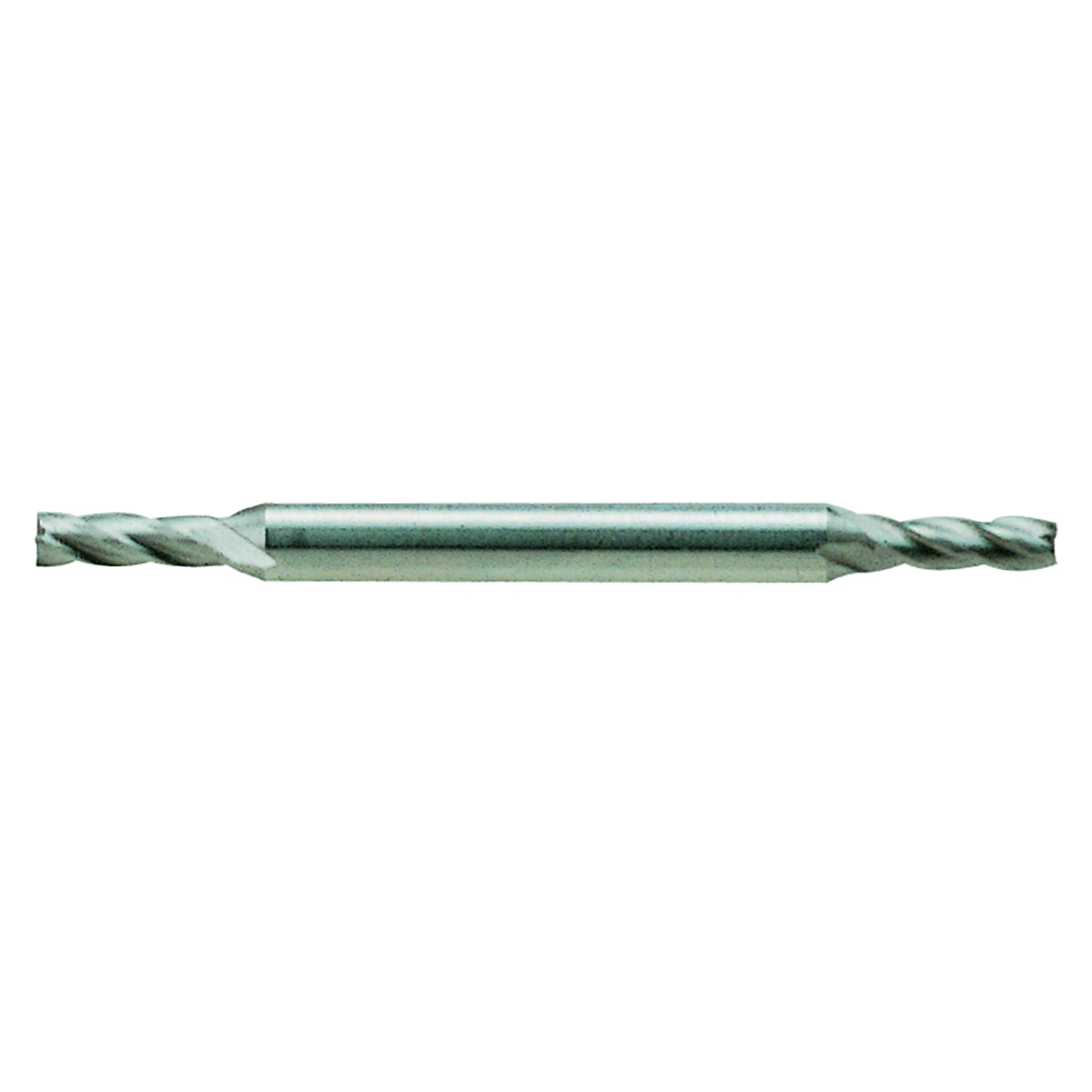

| EDP Number | 53270CF |
| Diameter (Decimal Inch) | 0.1719" |
| Diameter (Inch) | 11/64" |
| Diameter (mm) | 4.37mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (mm) | 57.15mm |
| Series | E2004 |
| Shank Style | Plain |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Coating | TiAIN F |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mills |
| Application | P |
| Material | HSSCo8 |
