Product Specifications
| EDP Number | 53904 |
| Diameter (Decimal Inch) | 0.6300" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall-Length-(Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Ball Nose Radius (Inch) | 3/8" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5062 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Extra Long |
| End Type | Single End |

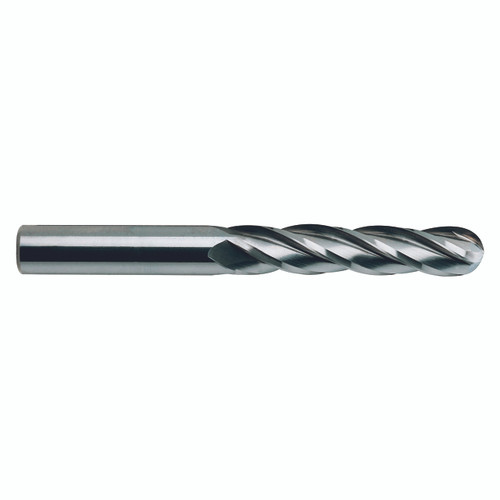

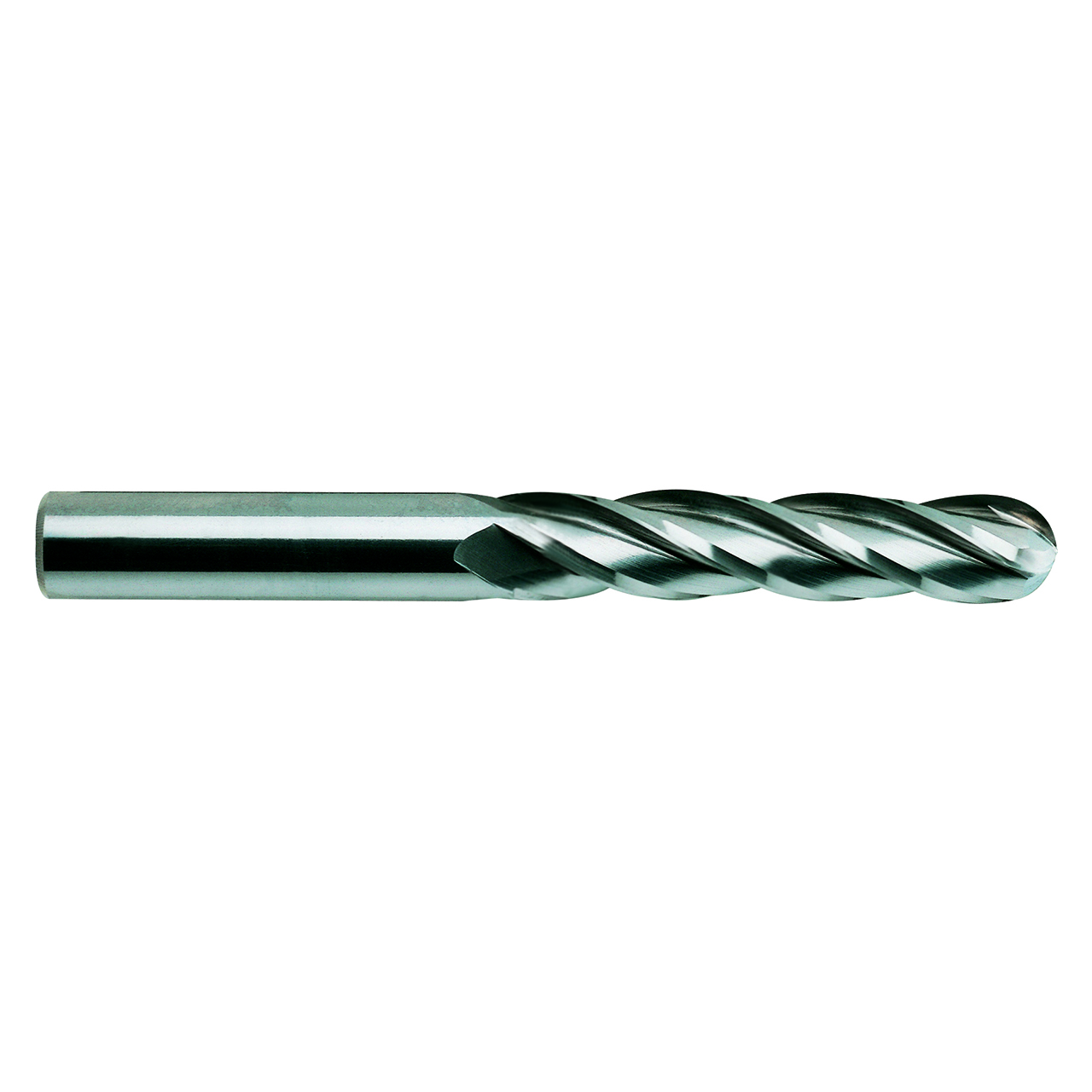

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6300"
Mill Diameter (mm):
15.88mm
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Material:
Carbide
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
Plain
Cutting Direction:
Right
Single or Double End:
Single
Helix Angle:
0
