Product Specifications
| EDP Number | 53906TN |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall-Length-(Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Ball Nose Radius (Inch) | 1/2" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5062 |
| Coating | TiN |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Extra Long |
| End Type | Single End |

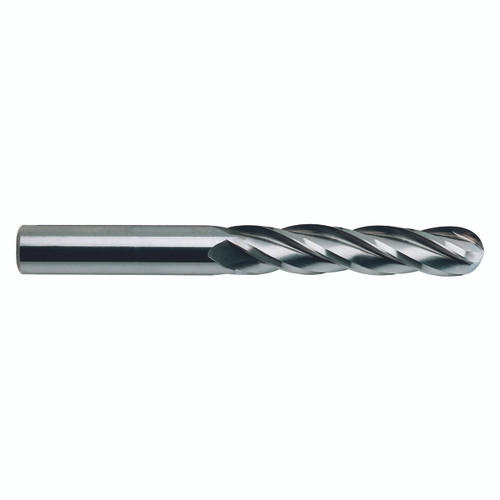

| Product Type | Ball End Mill |
