| Manufacturer Part Number | 54010HF |
| Diameter (Decimal Inch) | 0.0938" |
| Diameter (Inch) | 3/32" |
| Diameter (mm) | 2.38mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.2813" |
| Length of Cut (Inch) | 9/32" |
| Length of Cut (mm) | 7.14mm |
| Overall Length (Decimal Inch) | 2.6250" |
| Overall Length (Inch) | 2-5/8" |
| Overall Length (mm) | 66.68mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 39 Degree |
| Material | HSS |
| Coating | TiALN-Futura |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1006 |
| End Type | Double End |
| Length Type | Long |

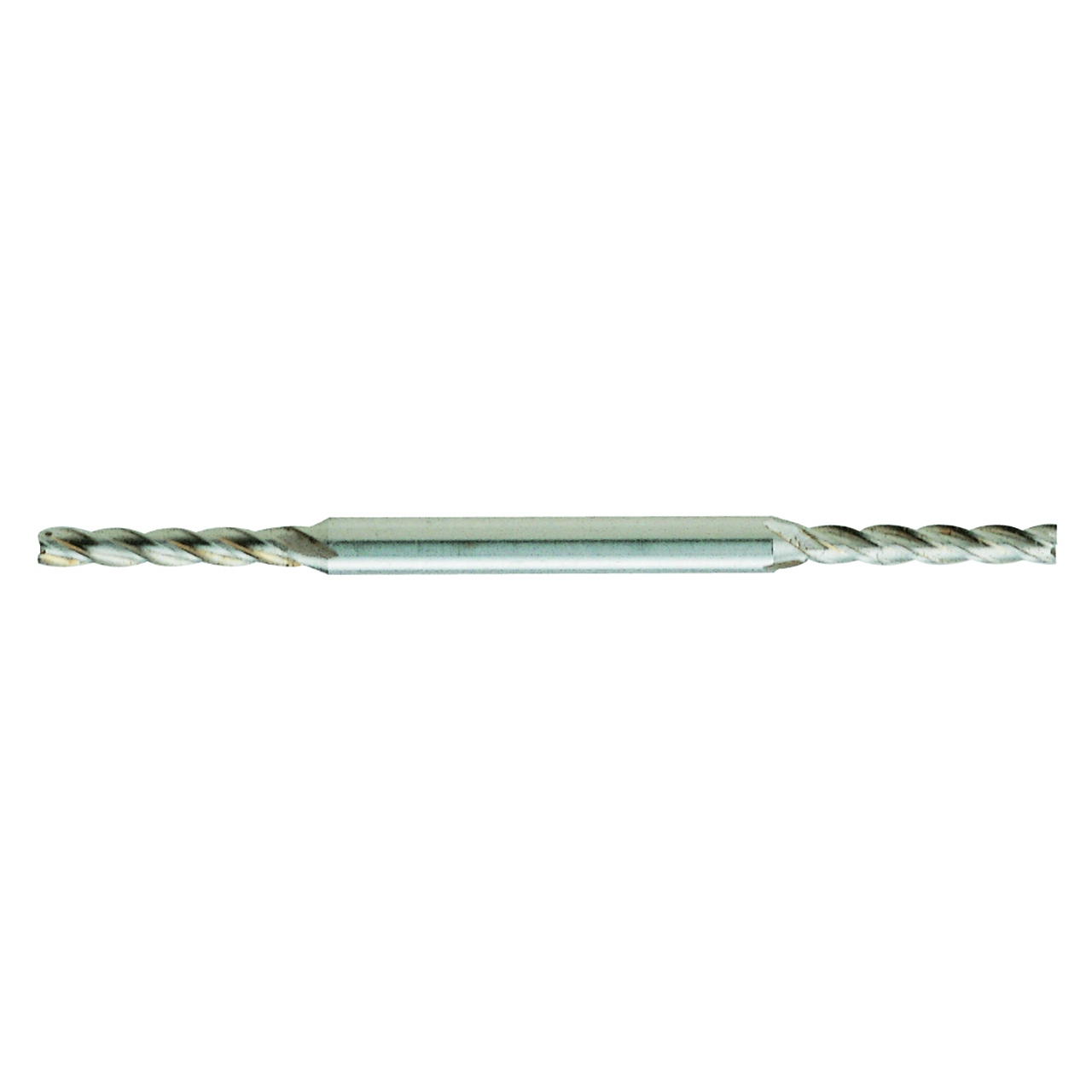

| Product Type | Miniature End Mill |
