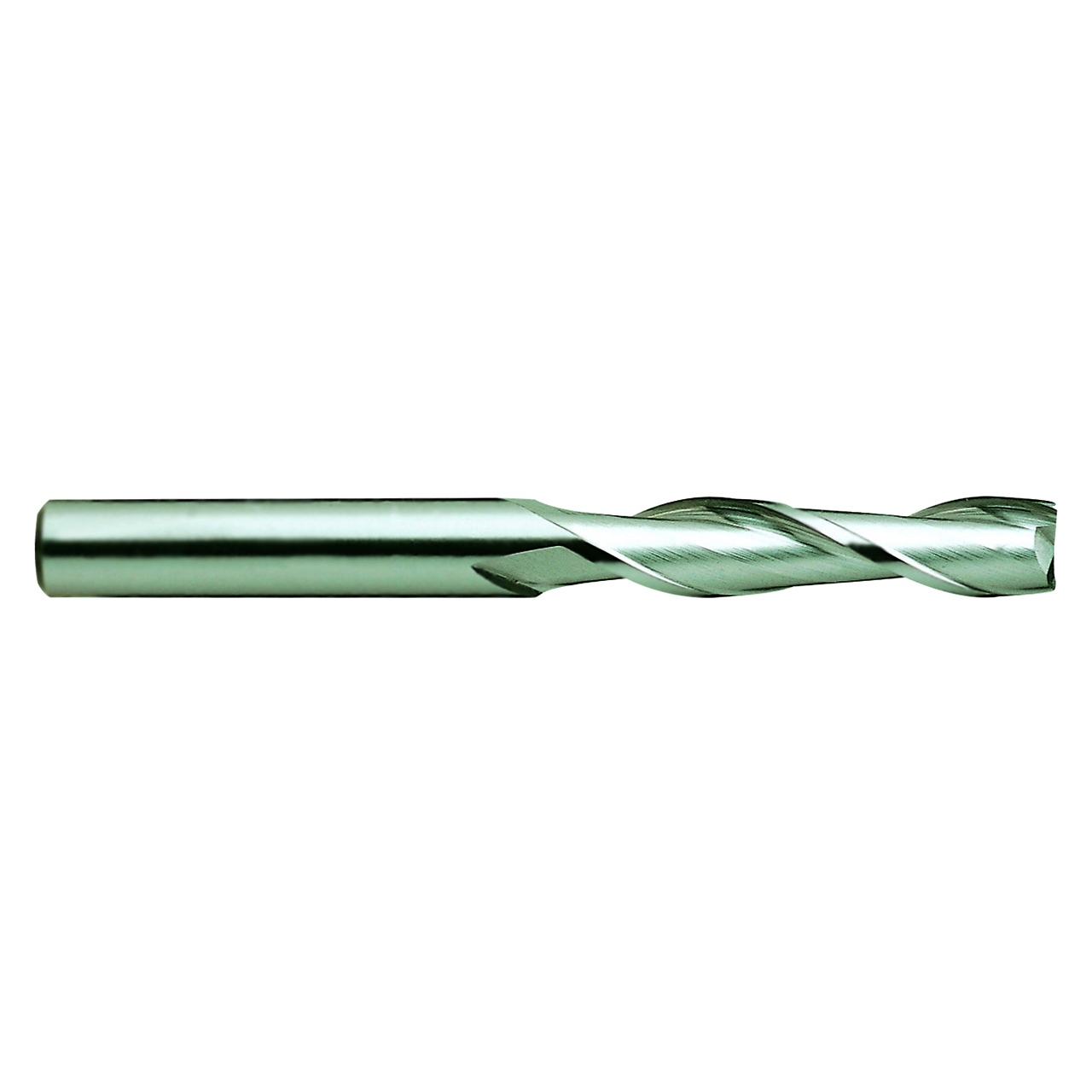

YG1 54598TC | 0.750" Diameter x 0.750" Shank x 3.000" LOC x 6.000" OAL 30 Degree Helix Angle 2 TiCN Coated Carbide Square End Mill

$364.18 $247.64
(You save $116.54)
Brand:
YG1
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
2
Length of Cut (Decimal Inch):
3.0000"
Length of Cut (mm):
76.20mm
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
TiCN
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25048249
UPC:
Weight:
1.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number54598TC
Diameter (Decimal Inch)0.7500"
Diameter (Inch)3/4"
Diameter (mm)19.05mm
Shank Diameter (Decimal Inch)0.7500"
Shank Diameter (Inch)3/4"
Shank Diameter (mm)19.05mm
Length of Cut (Decimal Inch)3.0000"
Length of Cut (Inch)3"
Length of Cut (mm)76.20mm
Overall Length (Decimal Inch)6.0000"
Overall Length (Inch)6"
Overall Length (mm)152.40mm
Helix Angle (Degree)30 Degree
Number of Flutes2
Cutting DirectionRight
ApplicationP
Shank StylePlain
SeriesE5026
CoatingTiCN
MaterialCarbide
Cut TypeCenter
End TypeSingle End
Product TypeSquare End Mill
