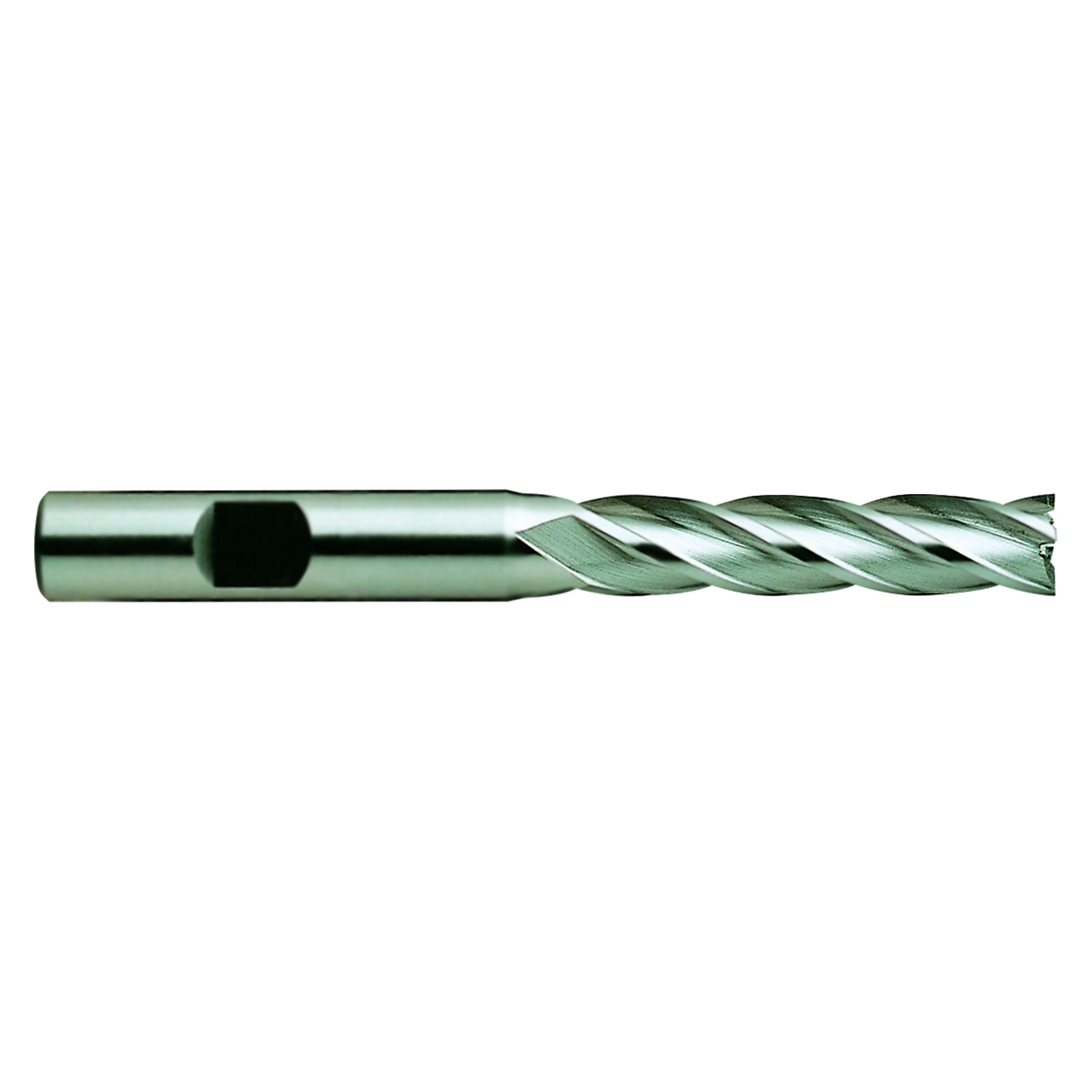

Product Specifications
| EDP Number | 05470 |
| Diameter (Decimal Inch) | 1.7500" |
| Diameter (Inch) | 1-3/4" |
| Diameter (mm) | 44.45mm |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (mm) | 31.75mm |
| Length of Cut (Decimal Inch) | 4.0000" |
| Length of Cut (Inch) | 4" |
| Length of Cut (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.5000" |
| Overall Length (Inch) | 6-1/2" |
| Overall Length (mm) | 165.10mm |
| Series | E2035 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 6 |
| Coating | Bright |
| Cut Type | End Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1-3/4"
Mill Diameter (Decimal Inch):
1.7500"
Mill Diameter (mm):
44.45mm
Number of Flutes:
6
Length of Cut (Inch):
4"
Length of Cut (Decimal Inch):
4.0000"
Length of Cut (mm):
101.60mm
Shank Type:
Flat
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Application:
End Cutting
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Overall Length (mm):
165.10mm
Helix Angle:
30 Degree
interval quantity:
1
