| Manufacturer Part Number | 56268CN |
| Diameter (Decimal Inch) | 0.1563" |
| Diameter (Inch) | 5/32" |
| Diameter (mm) | 3.97mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.4375" |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (mm) | 57.15mm |
| Ball Nose Radius (Decimal Inch) | 0.0781" |
| Ball Nose Radius (mm) | 1.98mm |
| Series | E2013 |
| Shank Style | Plain |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 5/64" |
| Coating | TiN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

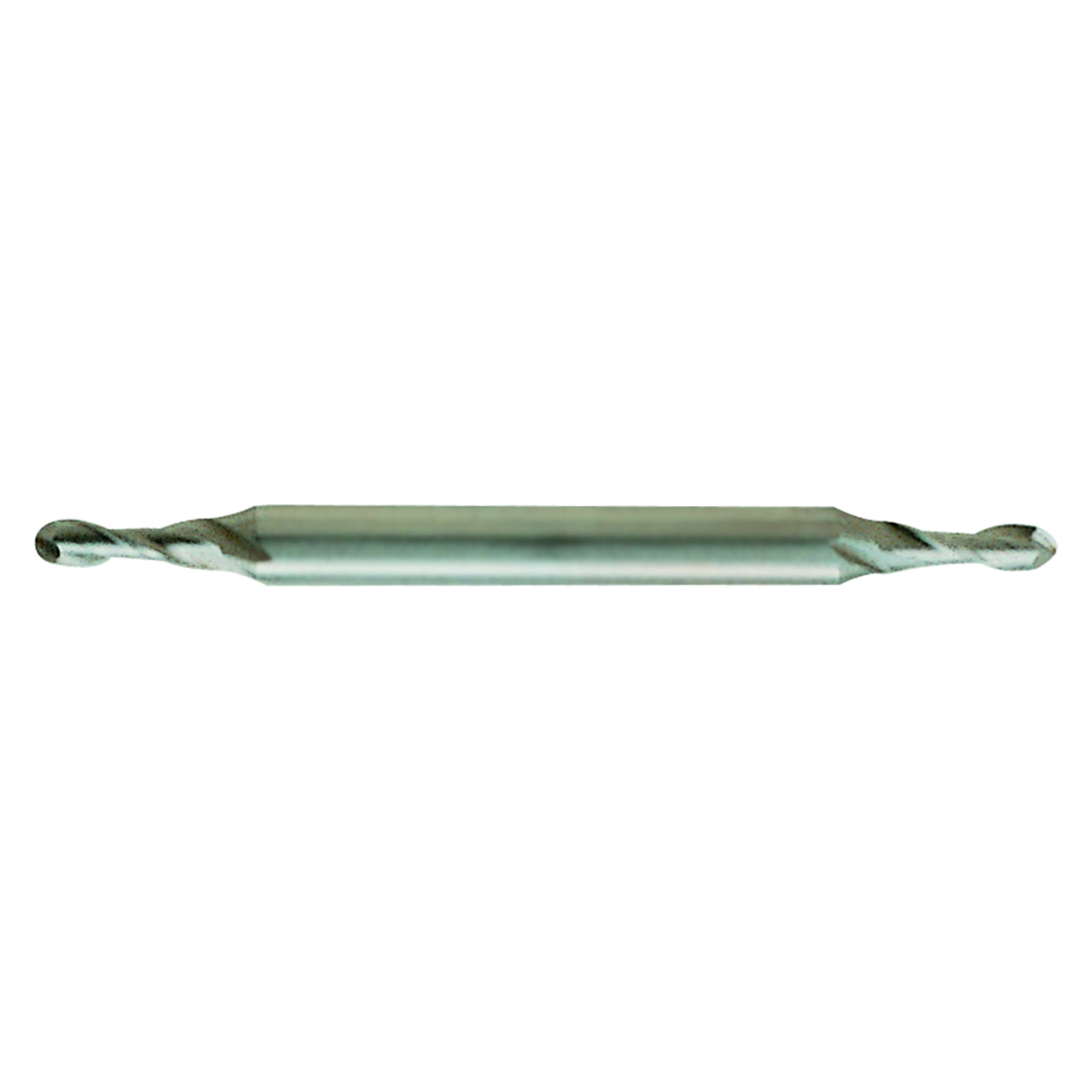

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
