| EDP Number | 56595TE |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Corner Radius (Decimal Inch) | 0.0330" |
| Corner Radius (Inch) | 57/68" |
| Corner Radius (mm) | 0.84mm |
| Number of Flutes | 3 |
| Series | E5104 |
| Helix Angle (Degree) | 35 Degree |
| Coating | AlTiN |
| Material | Carbide |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Length Type | Regular |
| Application | P,M |
| Cutting Direction | Right Hand |

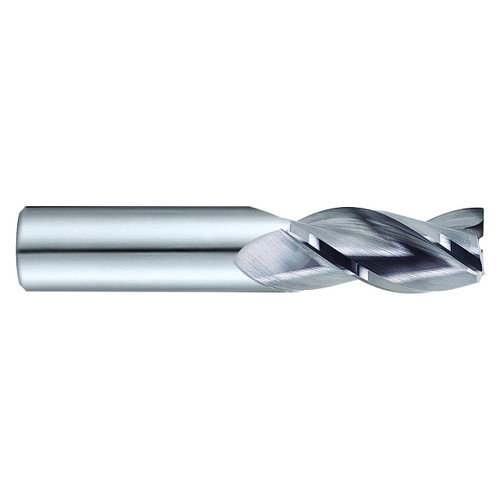

| Product Type | Corner Radius End Mill |
