Product Specifications
| EDP Number | 57256CE |
| Diameter (Decimal Inch) | 0.0625" |
| Diameter (Inch) | 1/16" |
| Diameter (mm) | 1.59mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.2188" |
| Length of Cut (Inch) | 7/32" |
| Length of Cut (mm) | 5.56mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Decimal Inch) | 0.0313" |
| Ball Nose Radius (mm) | 0.79mm |
| Series | E2015 |
| Shank Style | Plain |
| Helix Angle | 39 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 1/32" |
| Coating | TiAIN E |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

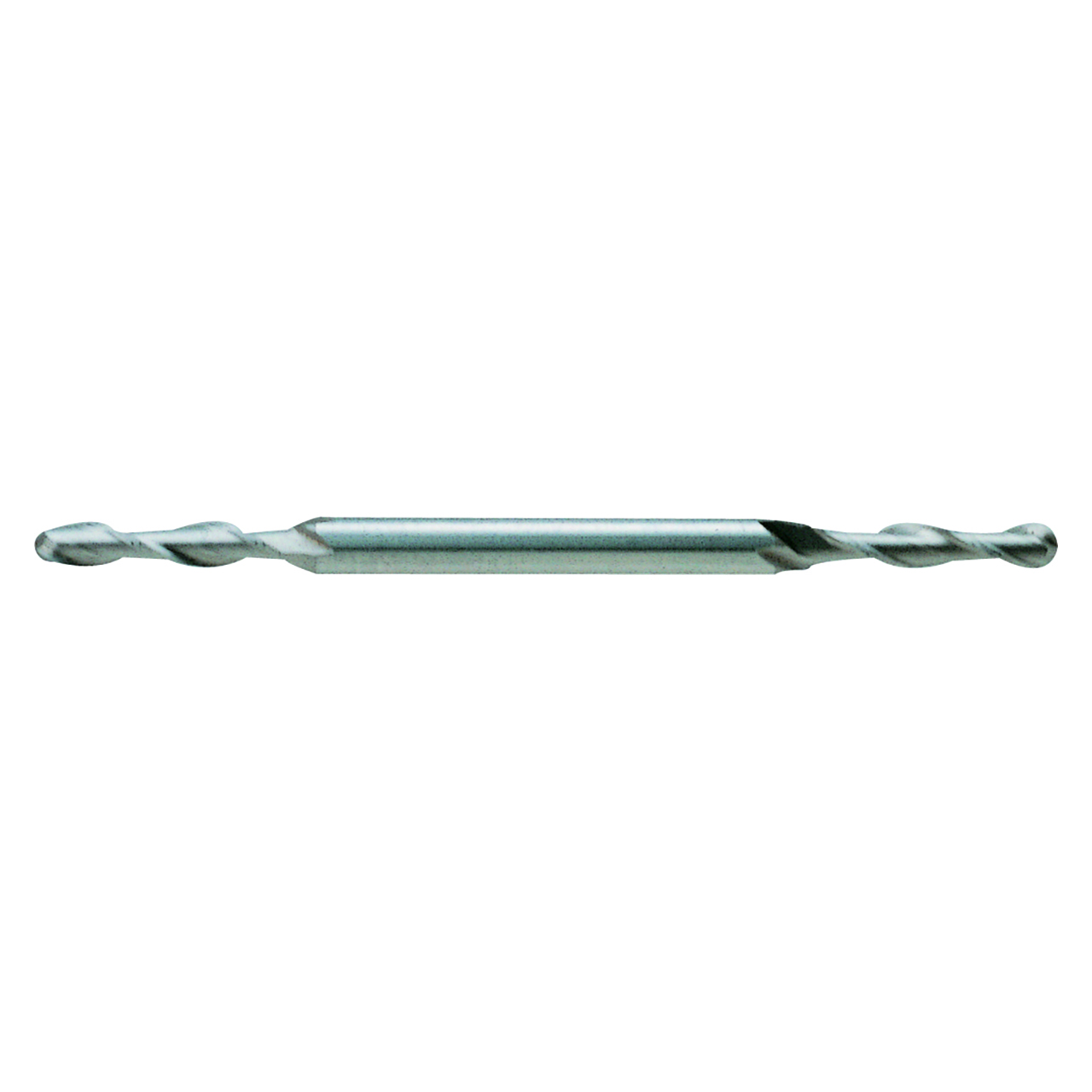

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
