Product Specifications
| EDP Number | 57582TE |
| Diameter (Decimal Inch) | 0.3438" |
| Diameter (Inch) | 11/32" |
| Diameter (mm) | 8.73mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Corner Radius (Decimal Inch) | 0.0170" |
| Corner Radius (Inch) | 19/44" |
| Corner Radius (mm) | 0.43mm |
| Number of Flutes | 3 |
| Series | E5105 |
| Helix Angle (Degree) | 35 Degree |
| Coating | AlTiN |
| Material | Carbide |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Length Type | Stub |
| Application | P,M |
| Cutting Direction | Right Hand |

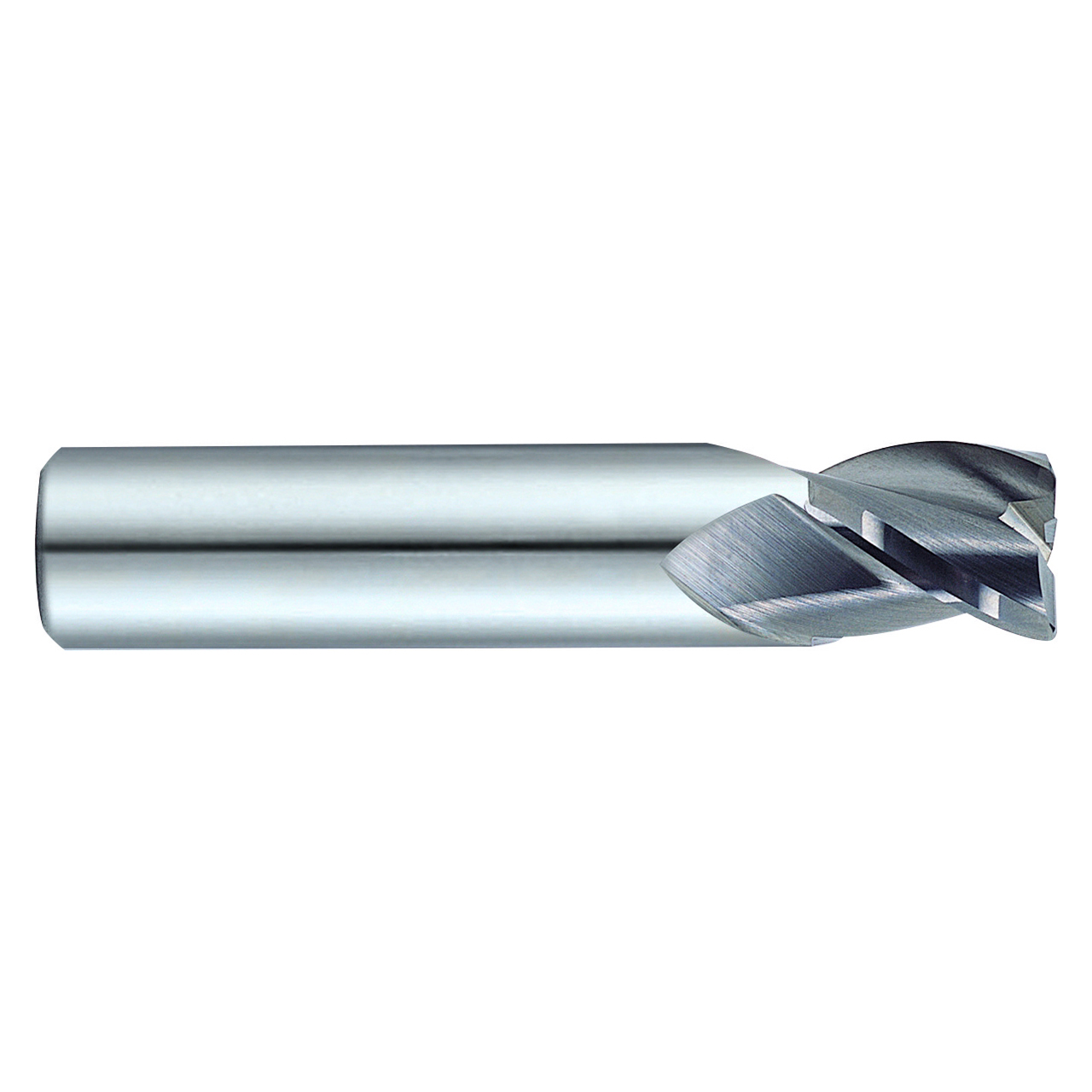

| Product Type | Corner Radius End Mill |
