Product Specifications
| EDP Number | 57595TC |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0330" |
| Corner Radius (Inch) | 57/68" |
| Corner Radius (mm) | 0.84mm |
| Number of Flutes | 3 |
| Series | E5105 |
| Helix Angle (Degree) | 35 Degree |
| Coating | TiCN |
| Material | Carbide |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Length Type | Stub |
| Application | P,M |
| Cutting Direction | Right Hand |

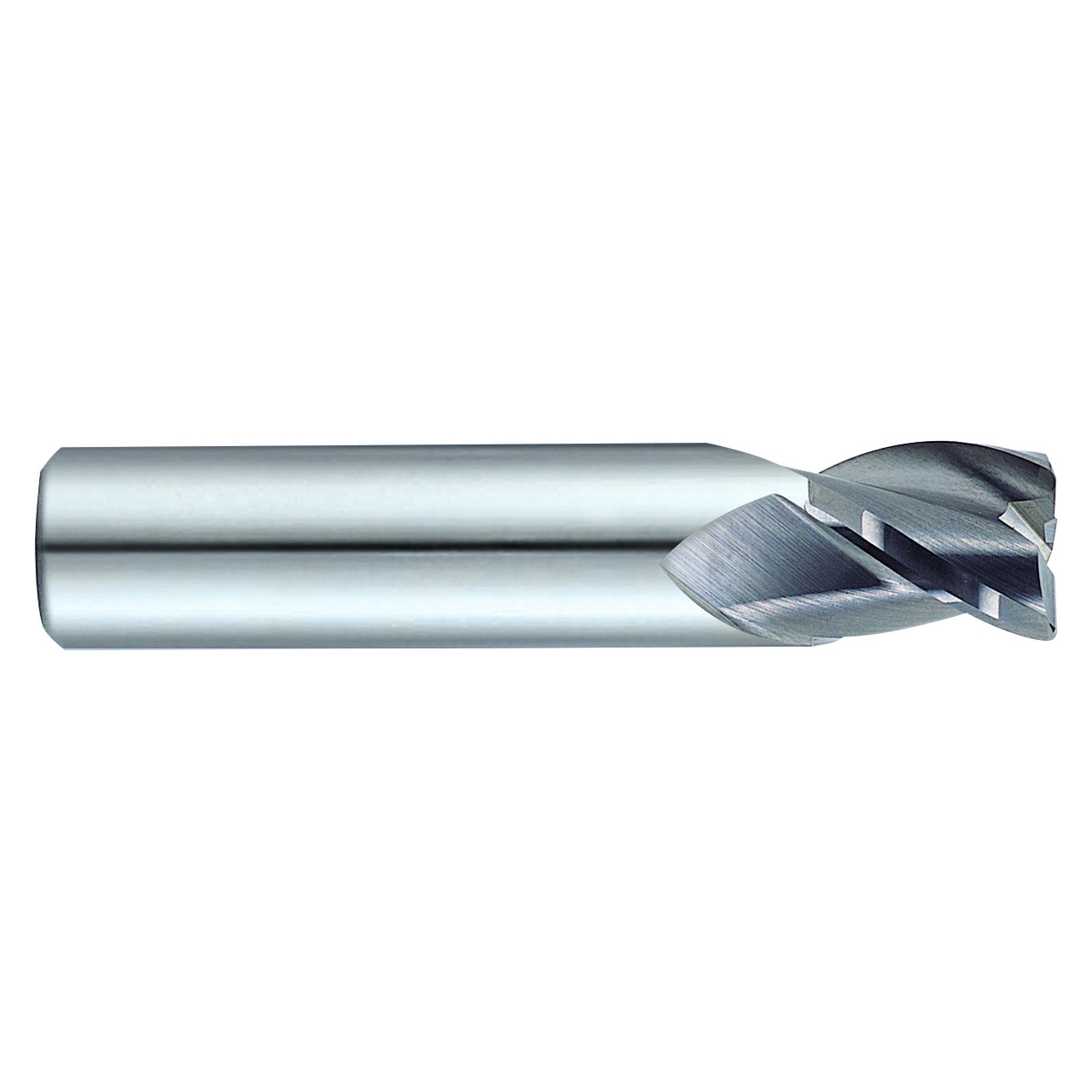

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Application:
P,M
interval quantity:
1
