Product Specifications
| EDP Number | 72422CE |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.2500" |
| Overall Length (Inch) | 3-1/4" |
| Overall Length (mm) | 82.55mm |
| Series | E2086 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 3 |
| Coating | TiAIN E |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mills |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
30 Degree
Cutting Direction:

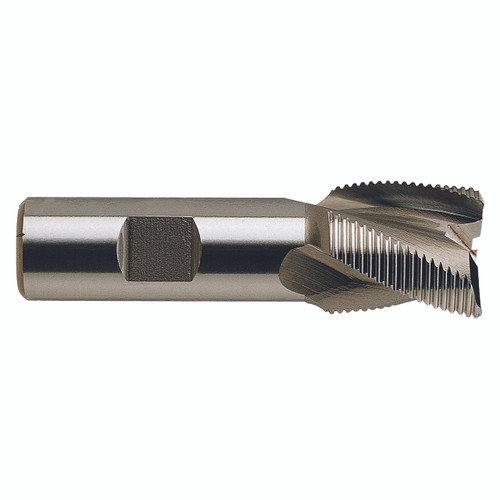

HSSCo8 3 Flute Stub Length Fine Pitch Roughing Center Cutting
