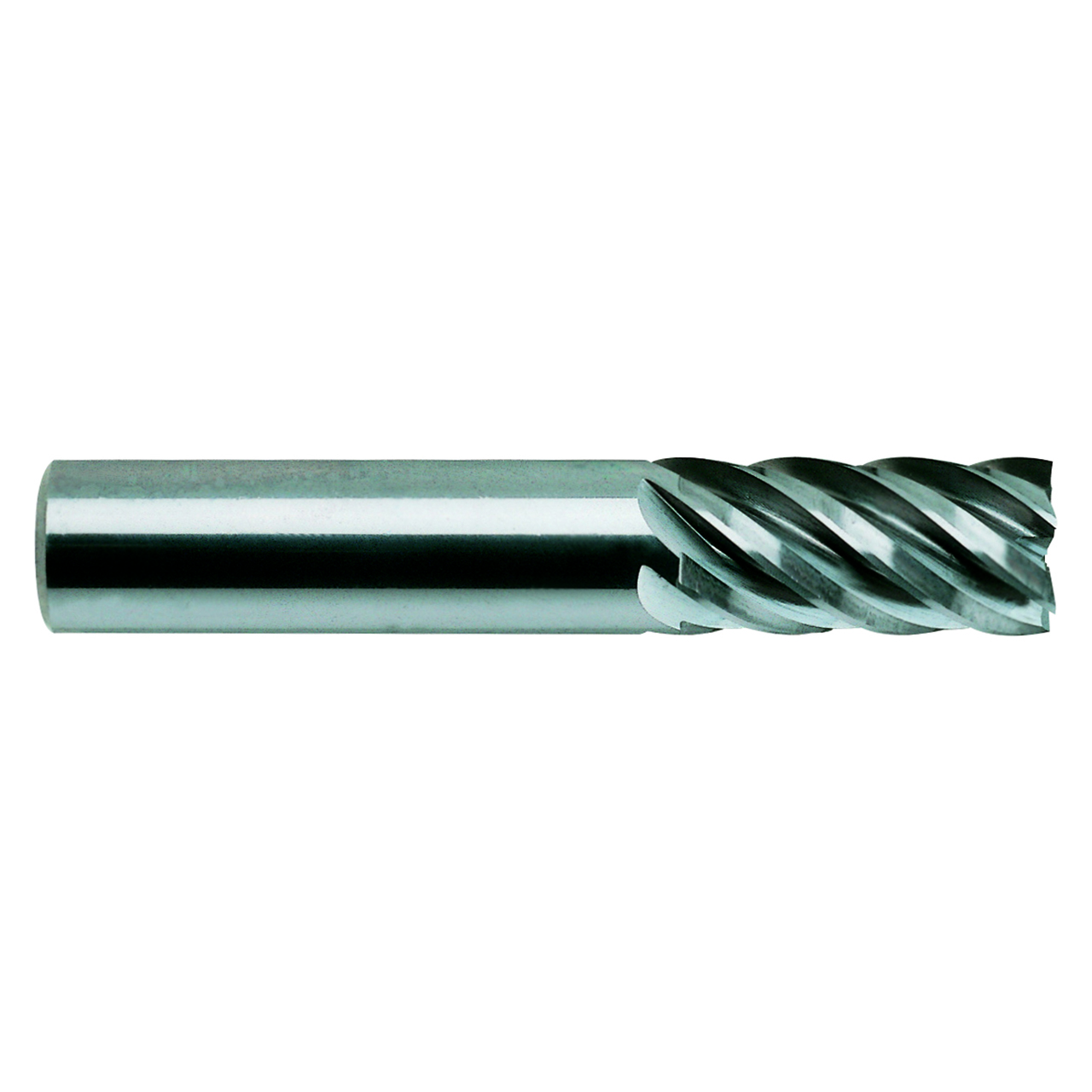

Product Specifications
| EDP Number | 84584TN |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 6 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5058 |
| Coating | TiN |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |
| Product Type | Square End Mill |
