Product Specifications
| EDP Number | 85558TN |
| Diameter (Decimal Inch) | 0.1300" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Decimal Inch) | 0.2500" |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall-Length-(Inch) | 1-1/2" |
| Overall Length (mm) | 38.10mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 5 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5066 |
| Coating | TiN |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Stub |
| End Type | Single End |

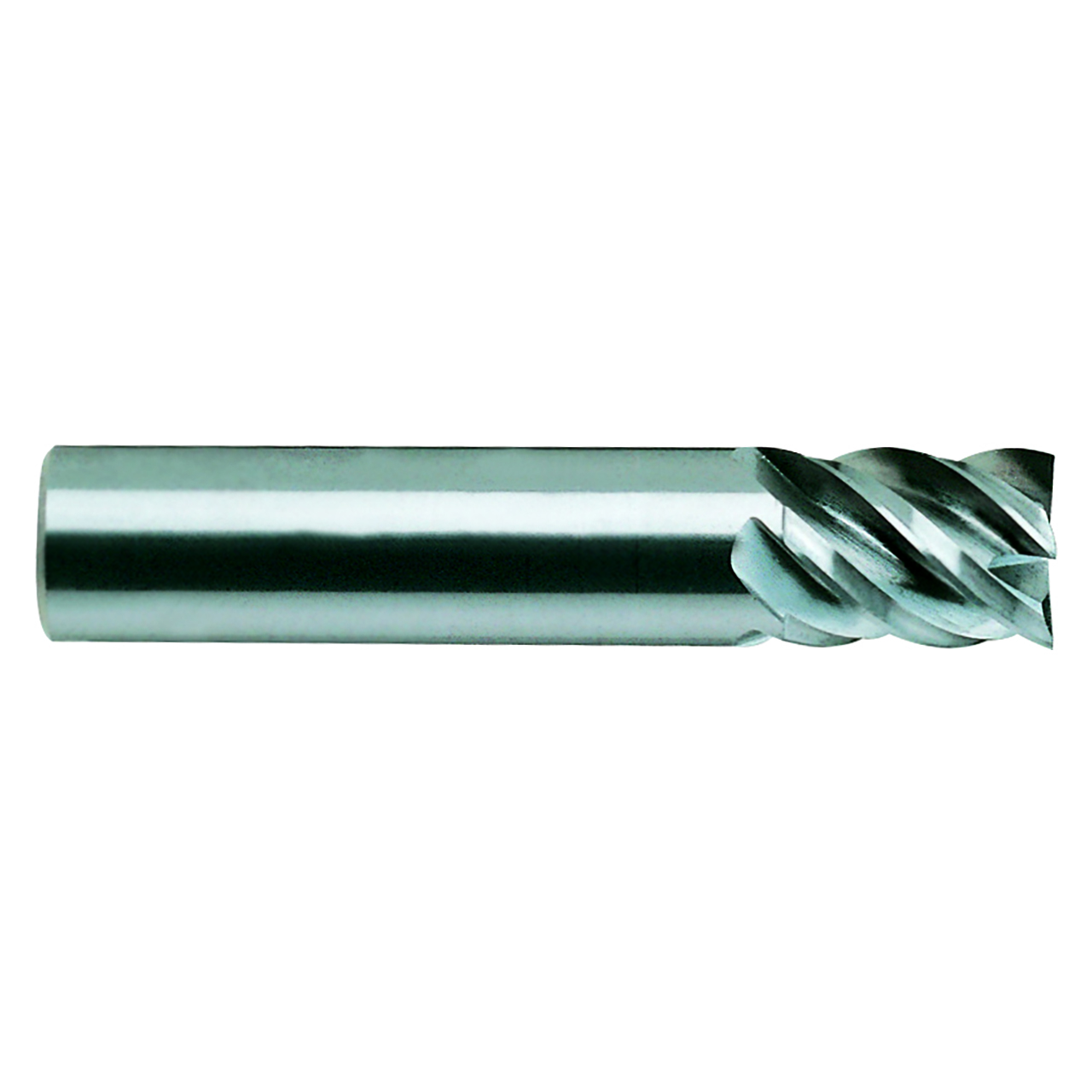

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
45 Degree
Cutting Direction:
Right
interval quantity:
1
