| Manufacturer Part Number | 88902 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Ball Nose Radius (Decimal Inch) | 0.0930" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5078 |
| Center Line Angle (Degree) | 7 Degree |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

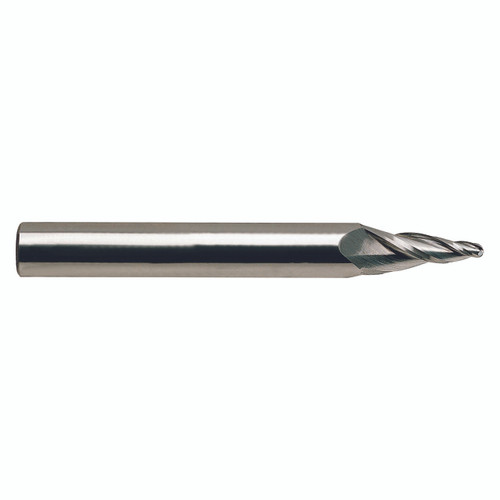

| Product Type | Ball End Tapered End Mill |
