Product Specifications
| # Manufacturer Number | 93238 |
| Diameter (Decimal Inch) | 0.0625" |
| Diameter (Inch) | 1/16" |
| Diameter (mm) | 1.59mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (mm) | 57.15mm |
| Corner Radius (Decimal Inch) | 0.0080" |
| Corner Radius (Inch) | 1/125" |
| Corner Radius (mm) | 0.20mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM649 |

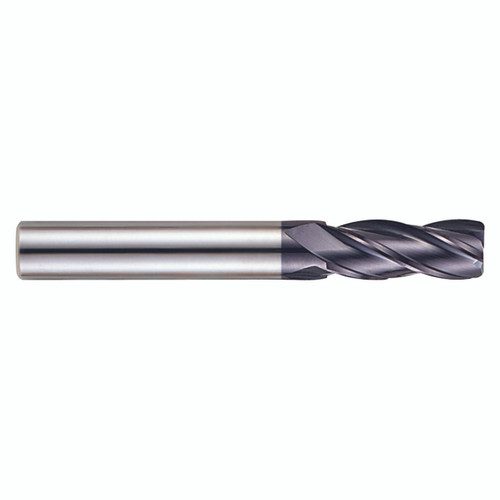

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0625"
Mill Diameter (mm):
1.59mm
Number of Flutes:
4
Corner Radius (Inch):
1/125"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1875"
Length of Cut (mm):
4.76mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Application:
P
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2500"
Overall Length (mm):
57.15mm
Cutting Direction:
Right
