Product Specifications
| # Manufacturer Number | 93350 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (mm) | 160.00mm |
| Ball Nose Radius (Decimal Inch) | 0.3937" |
| Ball Nose Radius (Inch) | 37/94" |
| Ball Nose Radius (mm) | 10.00mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM815 |

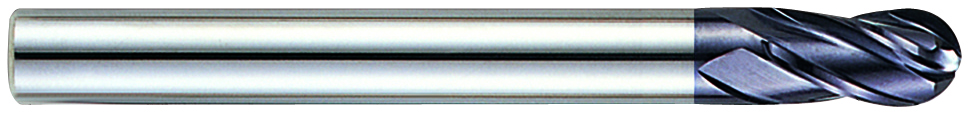

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
37/47"
Mill Diameter (Decimal Inch):
0.7874"
Mill Diameter (mm):
20.00mm
Number of Flutes:
4
Length of Cut (Inch):
1 1/2"
Length of Cut (Decimal Inch):
1.4961"
Length of Cut (mm):
38.00mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160.00mm
Shank Diameter (Inch):
37/47"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Finish/Coating:
AlTiN
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Center Cut
Application:
P
