| Manufacturer Part Number | 93404 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (Inch) | 7/8" |
| Diameter (mm) | 22.23mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| LBS (Decimal Inch) | 1.3750" |
| LBS (Inch) | 1-3/8" |
| LBS (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 8.0000" |
| Overall Length (Inch) | 8" |
| Overall Length (mm) | 203.20mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (Inch) | 1/50" |
| Corner Radius (mm) | 0.51mm |
| Neck Diameter (Decimal Inch) | 0.7300" |
| Neck Diameter (Inch) | 46/63" |
| Neck Diameter (mm) | 18.54mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 45 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM103 |

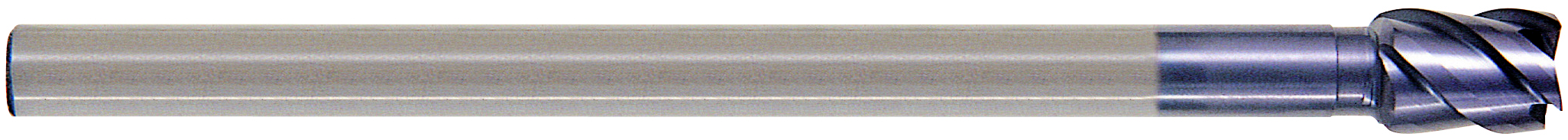

| Product Type | Long Reach Corner Radius End Mill |
