Product Specifications
| Manufacturer Part Number | 93427 |
| Cutting Diameter (Inch) | 1/28" |
| Cutting Diameter (Decimal Inch) | 0.035" |
| Cutting Diameter (mm) | 0.90mm |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (Decimal Inch) | 0.035" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Inch) | 2/23" |
| Length of Cut (Decimal Inch) | 0.086" |
| Length of Cut (mm) | 2.20mm |
| Overal Length (Inch) | 1-23/40" |
| Overal Length (Decimal Inch) | 1.574" |
| Overal Length (mm) | 40.00mm |
| Ball Nose Radius (Inch) | 1/56" |
| Ball Nose Radius (Decimal Inch) | 0.017" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |

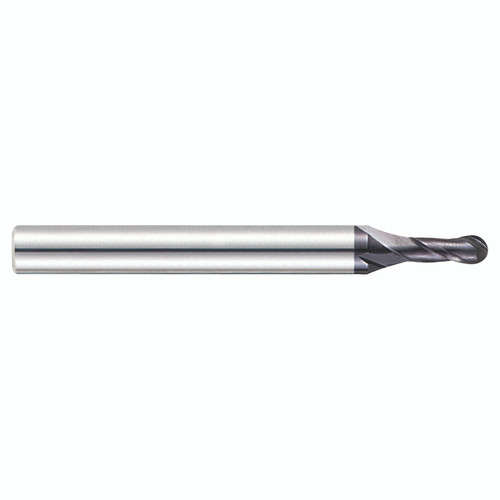

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
1/28"
Cutting Diameter (Decimal Inch):
0.0350"
Cutting Diameter (mm):
0.90mm
Shank Diameter (Inch):
2/17"
Shank Diameter (Decimal Inch):
0.0350"
Shank Diameter (mm):
3.00mm
Length of Cut (Inch):
2/23"
Length of Cut (Decimal Inch):
0.0860"
Length of Cut (mm):
2.20mm
Overall Length (Inch):
1-23/40"
Overall Length (Decimal Inch):
1.5740"
Overall Length (mm):
40.00mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
interval quantity:
1
