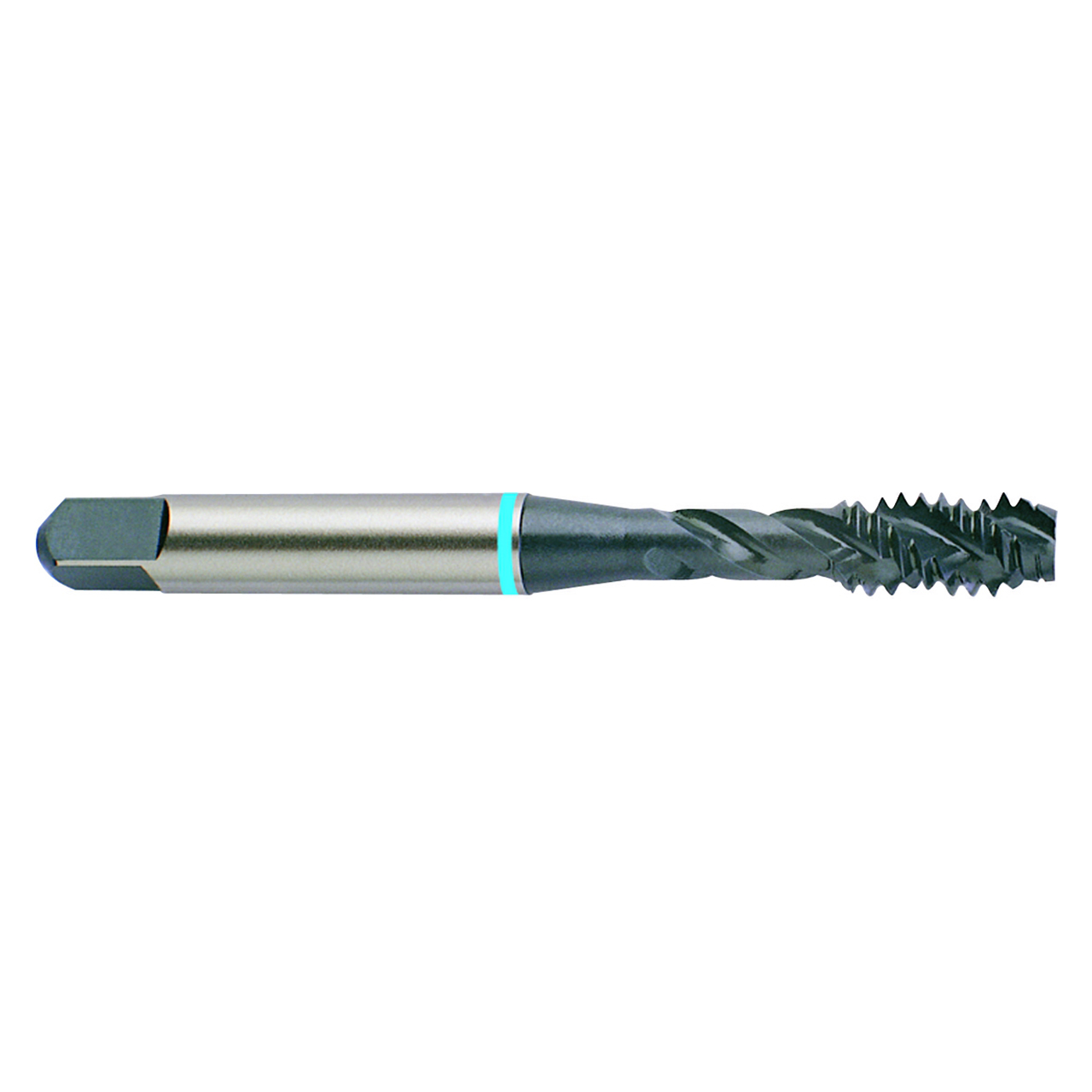

YG1 BB202 | 0.1250" Diameter x 0.1410" Shank x 1.9400" OAL 3 Flute Steam Oxide Coated Super HSS Spiral Flute Tap

$15.89
Brand:
YG1
Thread Size (Inch):
0.1250"
Thread Size (mm):
3.18mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
1.9400"
Overall Length (mm):
49.30mm
SKU:
15006835
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)BB202
Diameter (Decimal Inch)0.1250"
Diameter (mm)3.18mm
Overall Length (Decimal Inch)1.9400"
Overall Length (mm)49.30mm
Thread Length (Decimal Inch)0.2360"
Thread Length (mm)6.00mm
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.80mm
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)3.60mm
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)2.29mm
Number of Flutes3
Size & Pitch#5-40
Tap TypeSPFL
Size#5
Pitch40 TPI
Thread SeriesUNC
Pitch LimitH2
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishSteam Oxide
MaterialSuper HSS
Blank Standard302A
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)0.6260"
Useable Length (mm)15.90mm
Product TypeSpiral Flute Tap
