Product Specifications
| Diameter (Decimal Inch) | BB565 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.90mm |
| Thread Length (Decimal Inch) | 0.630" |
| Thread Length (mm) | 16.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.20mm |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.30mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 8.99mm |
| Number of Flutes | 3 |
| Size & Pitch | 1/2-13" |
| Tap Type | SPFL |
| Size | 1/2" |
| Pitch | 13 TPI |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Steam Oxide |
| Material | Super HSS |
| Blank Standard | 302A |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 2.0670" |
| Useable Length (mm) | 52.50mm |

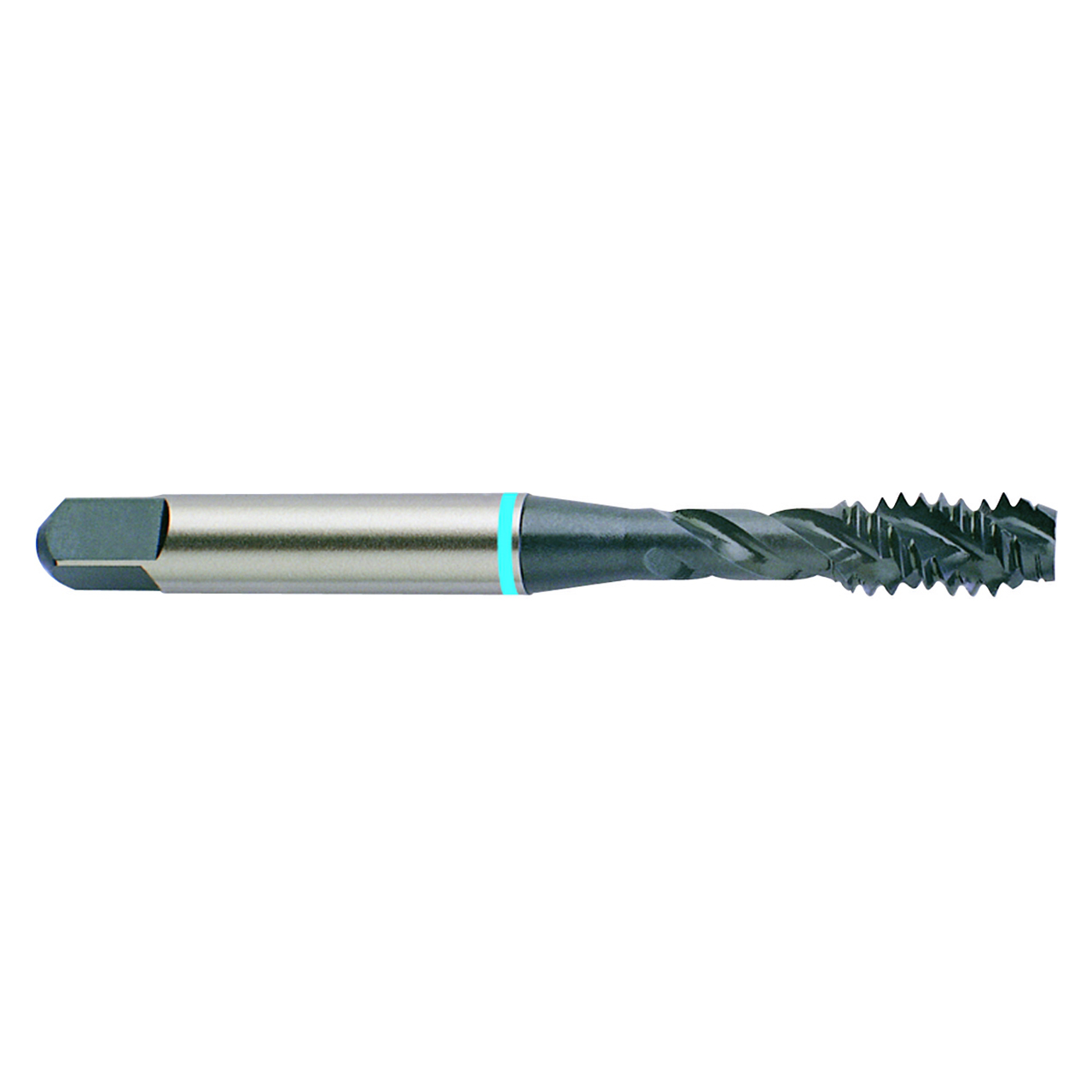

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.5000"
Thread Size (mm):
12.70mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
3.3800"
Overall Length (mm):
85.90mm
