Product Specifications
| Manufacturer Part Number | BB703 |
| Thread Size (Inch) | 3/4" |
| Thread Size (Decimal Inch) | 0.750" |
| Thread Size (mm) | 19.05mm |
| Threads per Inch (TPI) | 10 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 4.250" |
| Overall Length (mm) | 107.95mm |
| Thread Length (Decimal Inch) | 0.827" |
| Thread Length (mm) | 21.01mm |
| Square Length (Decimal Inch) | 0.690" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.590" |
| Shank Diameter (mm) | 14.99mm |
| Square Size (Decimal Inch) | 0.442" |
| Square Size (mm) | 11.23mm |
| Neck Diameter (Decimal Inch) | 0.577" |
| Neck Diameter (mm) | 14.66mm |
| Neck Length (Decimal Inch) | 2.480" |
| Neck Length (mm) | 62.99mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.659" |
| Drill Size (mm) | 16.74mm |
| Connection Size (Decimal Inch) | 0.590" x 0.442" |
| Connection Size (mm) | 14.99 x 11.23mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 2.480" |
| Usable Length (mm) | 62.99mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | 302A |

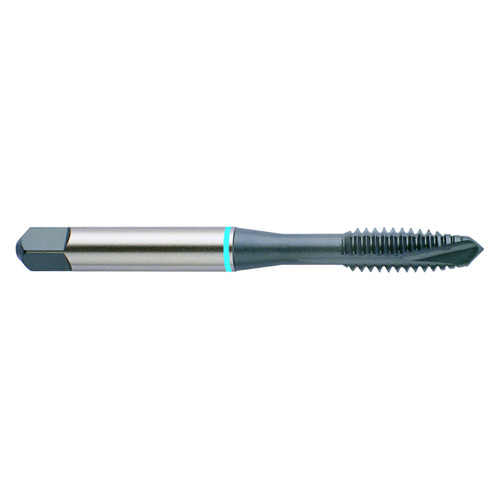

| Product Type | Spiral Flute Tap |
