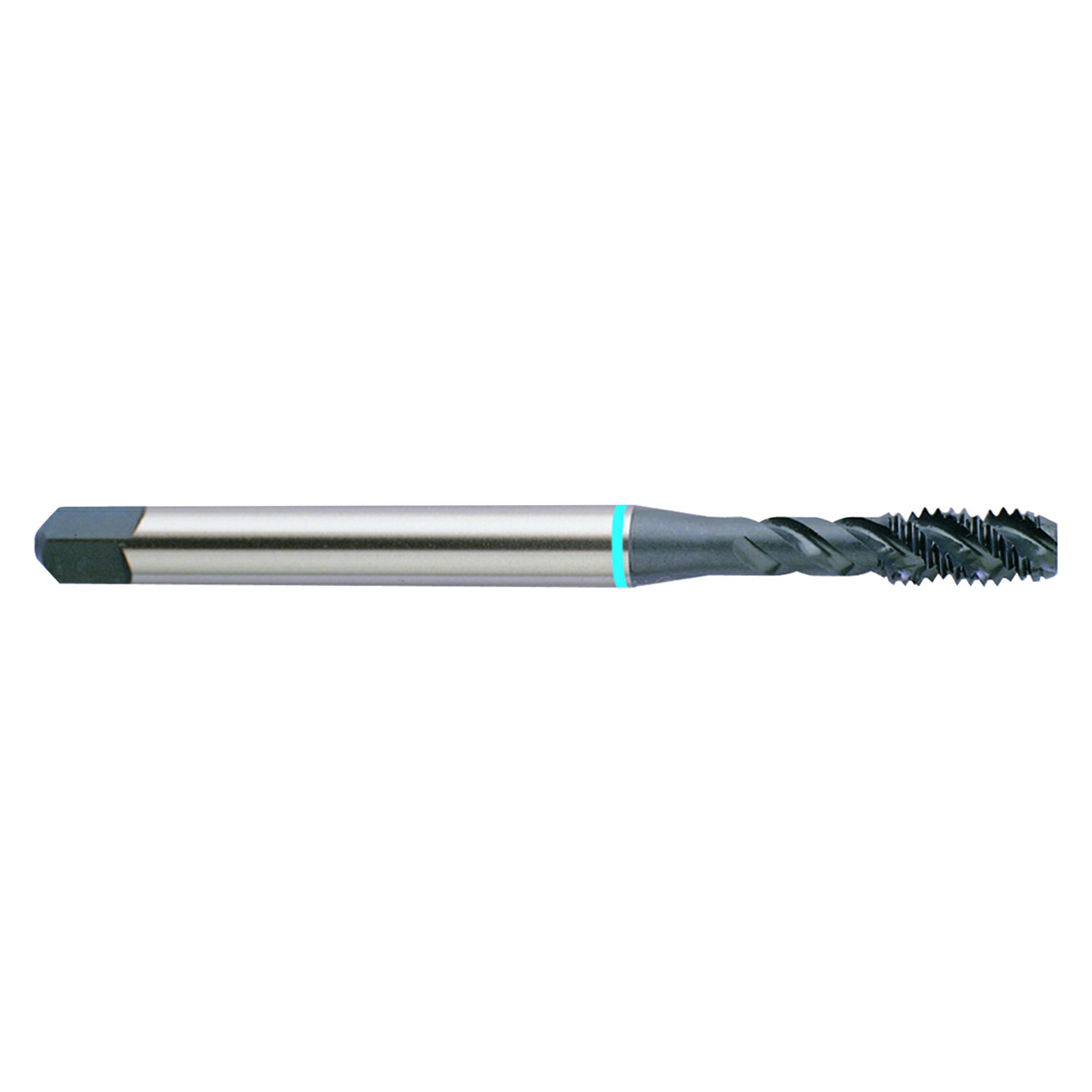

YG1 BD365 | 0.3150" Diameter x 0.3180" Shank x 3.5430" OAL 3 Flute Steam Oxide Coated Super HSS Spiral Flute Tap

$27.98 $20.15
(You save $7.83)
Brand:
YG1
Thread Size (Inch):
0.3150"
Thread Size (mm):
8.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
3.5430"
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
15006901
UPC:
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)BD365
Diameter (Decimal Inch)0.3150"
Diameter (mm)8.00mm
Overall Length (Decimal Inch)3.5430"
Overall Length (mm)90.00mm
Thread Length (Decimal Inch)0.4720"
Thread Length (mm)12.00mm
Square Length (Decimal Inch)0.3800"
Square Length (mm)9.70mm
Shank Diameter (Decimal Inch)0.3180"
Shank Diameter (mm)8.10mm
Square Size (Decimal Inch)0.2380"
Square Size (mm)6.05mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)6.25mm
Number of Flutes3
Size & PitchM8x1.25
Tap TypeSPFL
SizeM8
Pitch1.25 TPI
Thread SeriesM
Pitch LimitD5
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishSteam Oxide
MaterialSuper HSS
Blank StandardDIN/ANSI
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)1.1260"
Useable Length (mm)28.60mm
Product TypeSpiral Flute Tap
