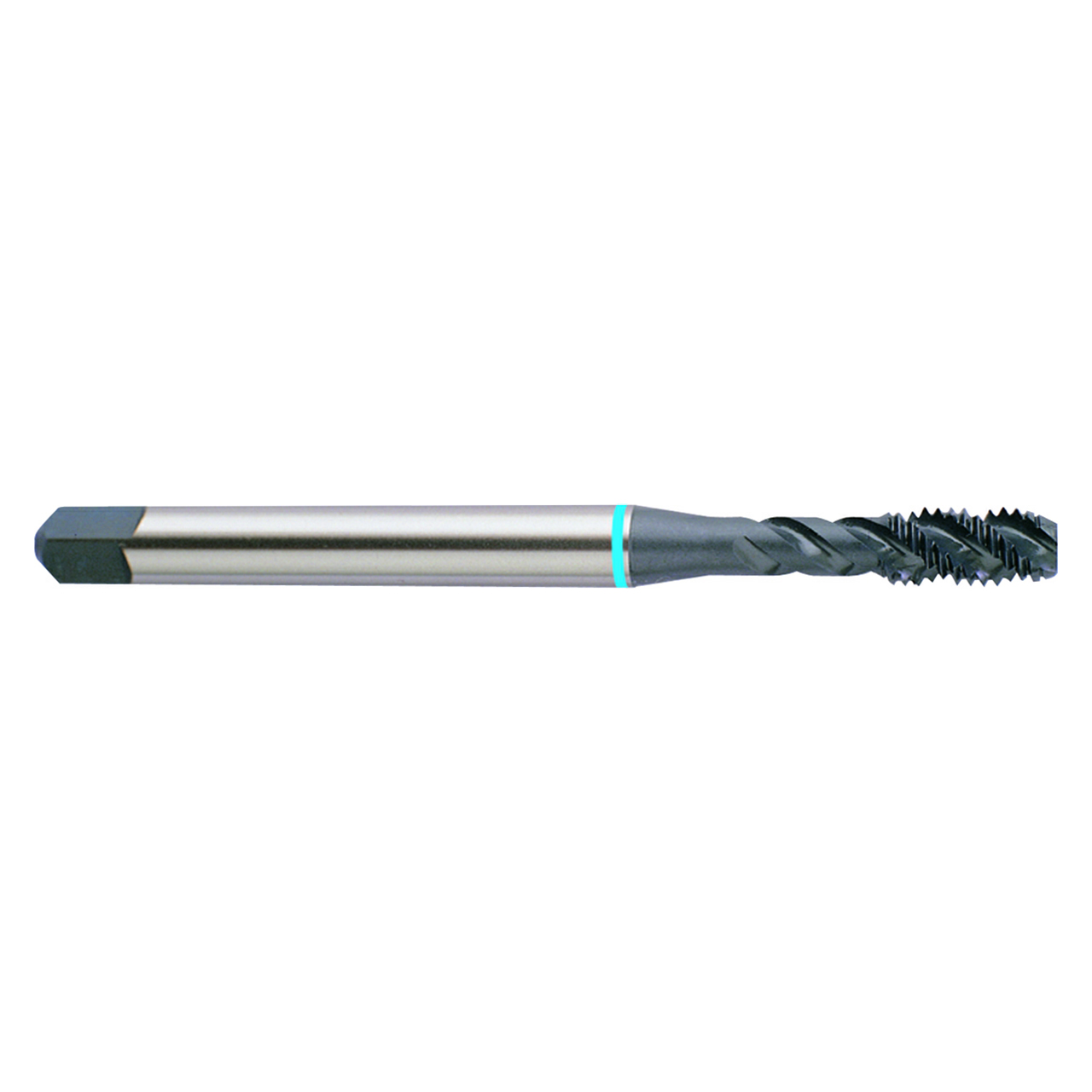

YG1 BF565 | 0.5000" Diameter x 0.3670" Shank x 4.3310" OAL 3 Flute Steam Oxide Coated Super HSS Spiral Flute Tap

$40.87
Brand:
YG1
Thread Size (Inch):
0.5000"
Thread Size (mm):
12.70mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
4.3310"
Overall Length (mm):
110.00mm
SKU:
15006930
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)BF565
Diameter (Decimal Inch)0.5000"
Diameter (mm)12.70mm
Overall Length (Decimal Inch)4.3310"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.630"
Thread Length (mm)16.00mm
Square Length (Decimal Inch)0.4400"
Square Length (mm)11.20mm
Shank Diameter (Decimal Inch)0.3670"
Shank Diameter (mm)9.30mm
Square Size (Decimal Inch)0.2750"
Square Size (mm)6.99mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)8.99mm
Number of Flutes3
Size & Pitch1/2-13"
Tap TypeSPFL
Size1/2"
Pitch13 TPI
Thread SeriesUNC
Pitch LimitH5
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishSteam Oxide
MaterialSuper HSS
Blank StandardDIN/ANSI
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)2.0670"
Useable Length (mm)52.50mm
Product TypeSpiral Flute Tap
