Features:
Product Specifications

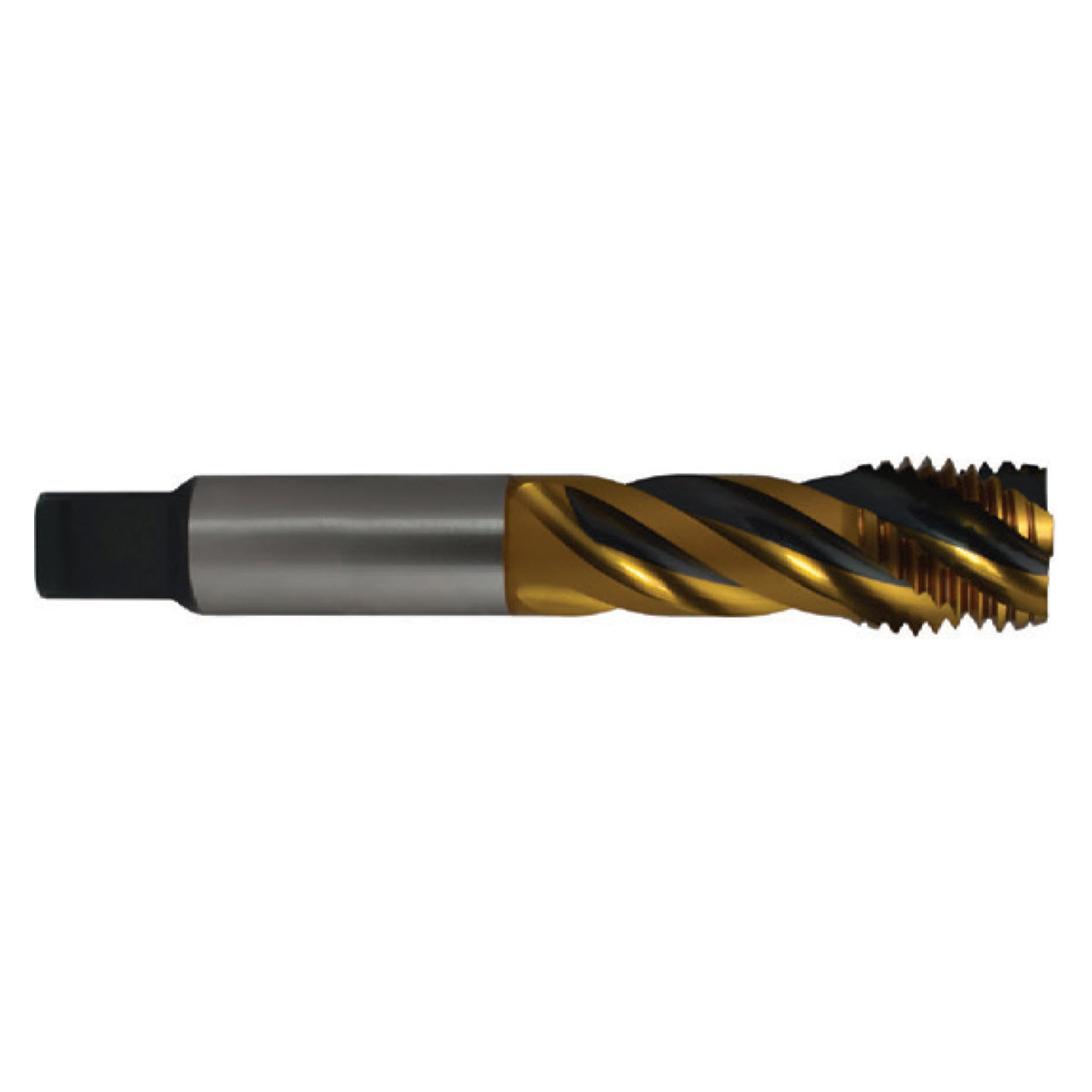

| EDP Number | BG832GB |
| Thread Diameter (Inch) | 1-1/8" |
| Diameter (Decimal Inch) | 1.1250" |
| Diameter (mm) | 28.58mm |
| Thread Pitch (TPI) | 8 TPI |
| Overall Length (Decimal Inch) | 7.0866" |
| Overall Length (mm) | 180.00mm |
| Thread Length (Decimal Inch) | 1.2598" |
| Thread Length (mm) | 32.00mm |
| Square Length (Decimal Inch) | 0.8800" |
| Square Length (mm) | 22.35mm |
| Shank Diameter (Decimal Inch) | 0.8960" |
| Shank Diameter (mm) | 22.76mm |
| Square Size (Decimal Inch) | 0.6720" |
| Square Size (mm) | 17.07mm |
| Neck Diameter (Decimal Inch) | 0.8800" |
| Neck Diameter (mm) | 22.35mm |
| Drill Size (Decimal Inch) | 1.0113" |
| Drill Size (mm) | 25.69mm |
| Useable Length (Decimal Inch) | 3.7402" |
| Useable Length (mm) | 95.00mm |
| Series | BG-GB |
| Number of Flutes | 4 |
| Thread Series | UN |
| Thread Class | 2B |
| Chamfer Length | 2P-3P |
| Tap Type | SPFL |
| Chamfer Type | Modified Bottoming |
| Coating | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Coolant Through | No |
| Trade Name | Oil Field Taps |
| Tap Type | Spiral Flute |
| Product Type | Spiral Flute Modified Bottom Tap |
