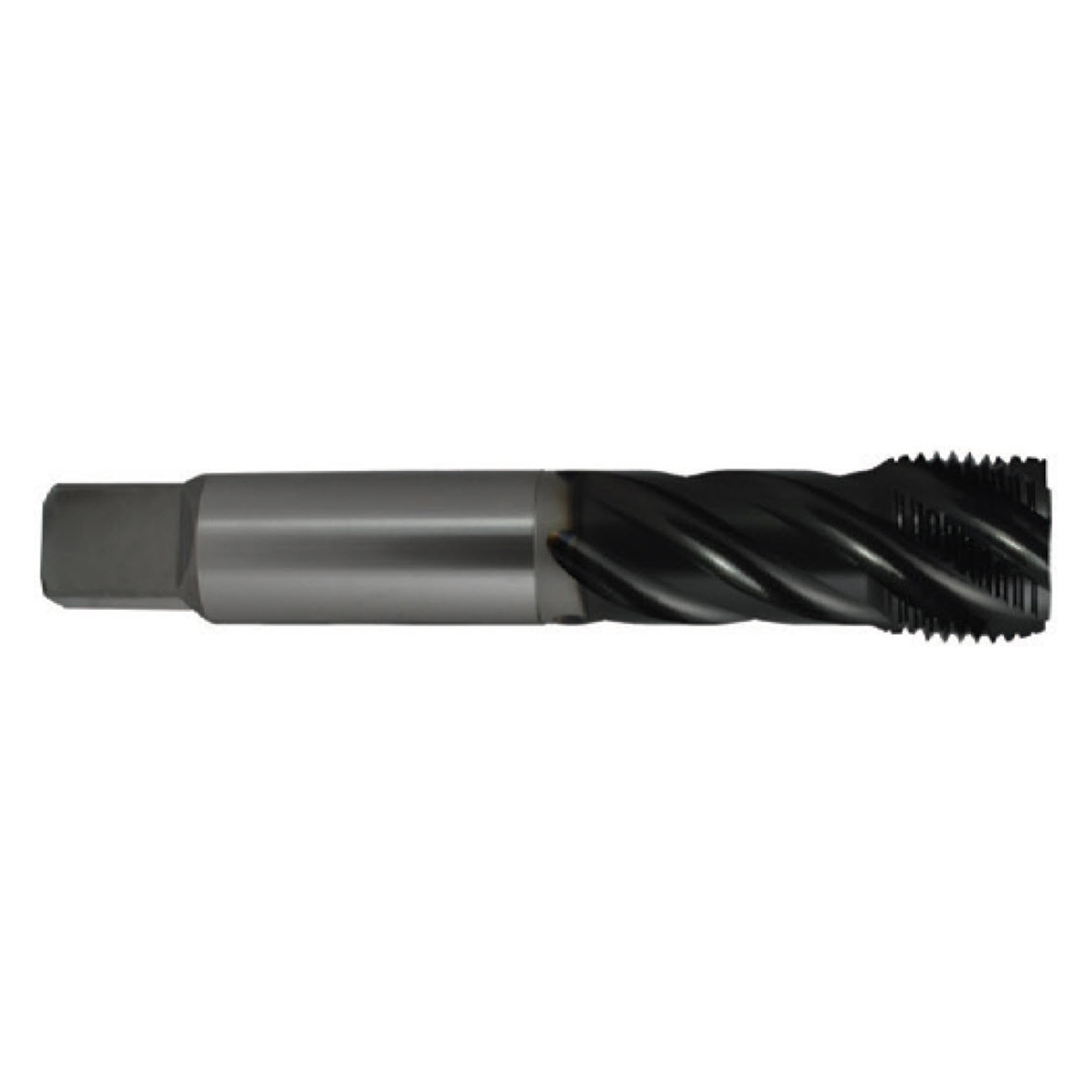

Features:
Product Specifications
| EDP Number | BGC62H |
| Thread Diameter (Inch) | 1-7/8" |
| Diameter (Decimal Inch) | 1.8750" |
| Diameter (mm) | 47.63mm |
| Thread Pitch (TPI) | 8 TPI |
| Overall Length (Decimal Inch) | 8.8583" |
| Overall Length (mm) | 225.00mm |
| Thread Length (Decimal Inch) | 1.3386" |
| Thread Length (mm) | 34.00mm |
| Square Length (Decimal Inch) | 1.2500" |
| Square Length (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.5190" |
| Shank Diameter (mm) | 38.58mm |
| Square Size (Decimal Inch) | 1.1390" |
| Square Size (mm) | 28.93mm |
| Neck Diameter (Decimal Inch) | 1.5000" |
| Neck Diameter (mm) | 38.10mm |
| Drill Size (Decimal Inch) | 1.7613" |
| Drill Size (mm) | 44.74mm |
| Useable Length (Decimal Inch) | 4.3307" |
| Useable Length (mm) | 110.00mm |
| Series | BG |
| Number of Flutes | 6 |
| Thread Series | UN |
| Thread Class | 2B |
| Chamfer Length | 2P-3P |
| Tap Type | SPFL |
| Chamfer Type | Modified Bottoming |
| Coating | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Coolant Through | No |
| Trade Name | Oil Field Taps |
| Tap Type | Spiral Flute |
| Product Type | Spiral Flute Modified Bottom Tap |
