Product Specifications
| Diameter (Decimal Inch) | BK645 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.7480" |
| Thread Length (mm) | 19.00mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.20mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.20mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 11.91mm |
| Number of Flutes | 4 |
| Size & Pitch | 5/8-11" |
| Tap Type | SPFL |
| Size | 5/8 |
| Pitch | 11 TPI |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Hardslick |
| Material | Super HSS |
| Blank Standard | DIN/ANSI |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 2.2050" |
| Useable Length (mm) | 56.01mm |

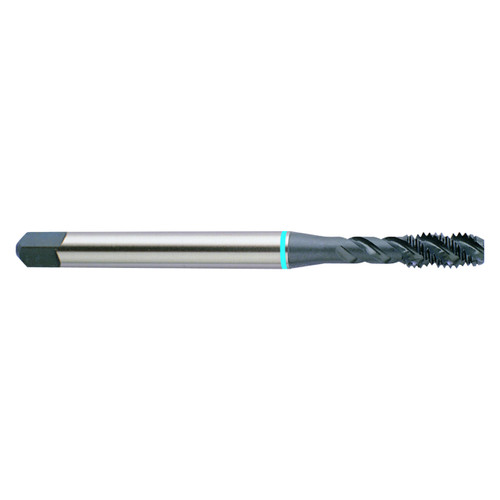

| Product Type | Spiral Flute Tap |
