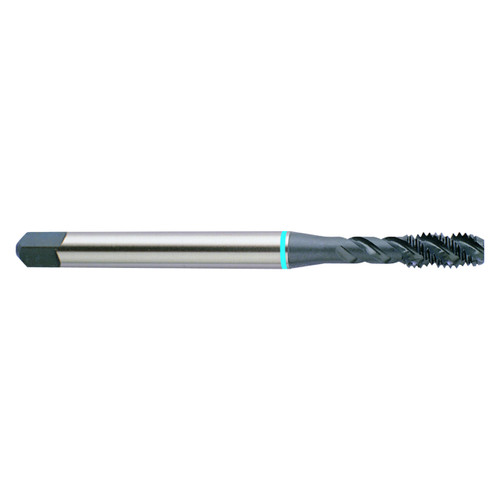

YG1 BK725 | 0.7500" Diameter x 0.5900" Shank x 4.3310" OAL 4 Flute Hardslick Coated Super HSS Spiral Flute Tap

$140.36
Brand:
YG1
Thread Size (Inch):
0.7500"
Thread Size (mm):
19.05mm
Number of Flutes:
4
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Hardslick
Overall Length (Inch):
4.3310"
Overall Length (mm):
110.00mm
SKU:
15007082
Weight:
0.29 LBS
Shipping:
Free Shipping

Product Specifications
Diameter (Decimal Inch)BK725
Diameter (Decimal Inch)0.7500"
Diameter (mm)19.05mm
Overall Length (Decimal Inch)4.3310"
Overall Length (mm)110.00mm
Thread Length (Decimal Inch)0.5910"
Thread Length (mm)15.00mm
Square Length (Decimal Inch)0.6900"
Square Length (mm)17.50mm
Shank Diameter (Decimal Inch)0.5900"
Shank Diameter (mm)15.00mm
Square Size (Decimal Inch)0.4420"
Square Size (mm)11.23mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)14.66mm
Number of Flutes4
Size & Pitch3/4-16"
Tap TypeSPFL
Size3/4
Pitch16 TPI
Thread SeriesUNF
Pitch LimitH5
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishHardslick
MaterialSuper HSS
Blank StandardDIN/ANSI
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)2.4800"
Useable Length (mm)62.99mm
Product TypeSpiral Flute Tap
