| Manufacturer Part Number | BM345 |
| Thread Size | M7 |
| Thread Size (Decimal Inch) | 0.276" |
| Thread Size (mm) | 7.00mm |
| Pitch (mm) | 1.00mm |
| Thread Series | M |
| Pitch Limit | D5 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 2.720" |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 0.433" |
| Thread Length (mm) | 11.00mm |
| Square Length (Decimal Inch) | 0.380" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.318" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.238" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.220" |
| Neck Diameter (mm) | 5.59mm |
| Neck Length (Decimal Inch) | 1.126" |
| Neck Length (mm) | 28.60mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.240" |
| Drill Size (mm) | 6.09mm |
| Connection Size (Decimal Inch) | 0.318" x 0.238" |
| Connection Size (mm) | 8.08 x 6.05mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 1.126" |
| Usable Length (mm) | 28.60mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Coating | HardSlick |
| Material | HSS-PM |
| Blank Standard | 302A |

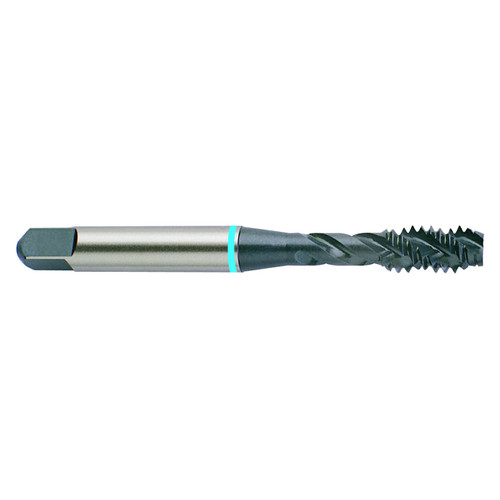

| Product Type | Spiral Flute Tap |
