Product Specifications
| Diameter (Decimal Inch) | BM426 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 2.9400" |
| Overall Length (mm) | 74.70mm |
| Thread Length (Decimal Inch) | 0.5120" |
| Thread Length (mm) | 13.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.20mm |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.70mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 7.87mm |
| Number of Flutes | 3 |
| Size & Pitch | M10x1.5 |
| Tap Type | SPFL |
| Size | M10 |
| Pitch | 1.5 TPI |
| Thread Series | M |
| Pitch Limit | D6 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Hardslick |
| Material | Super HSS |
| Blank Standard | 302A |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 1.2520" |
| Useable Length (mm) | 31.80mm |

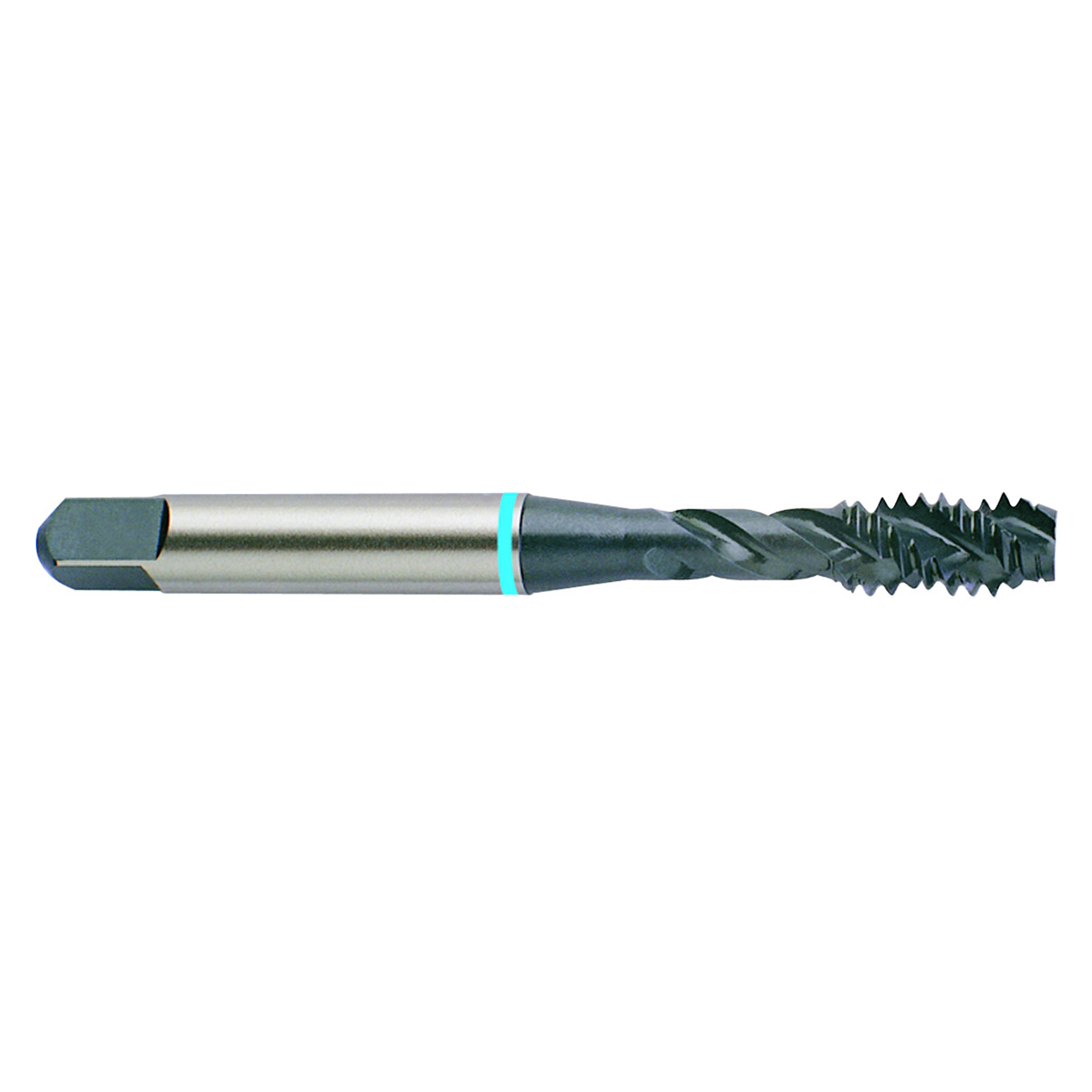

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.3937"
Thread Size (mm):
10.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
HardSlick
Overall Length (Inch):
2.9400"
Overall Length (mm):
74.70mm
