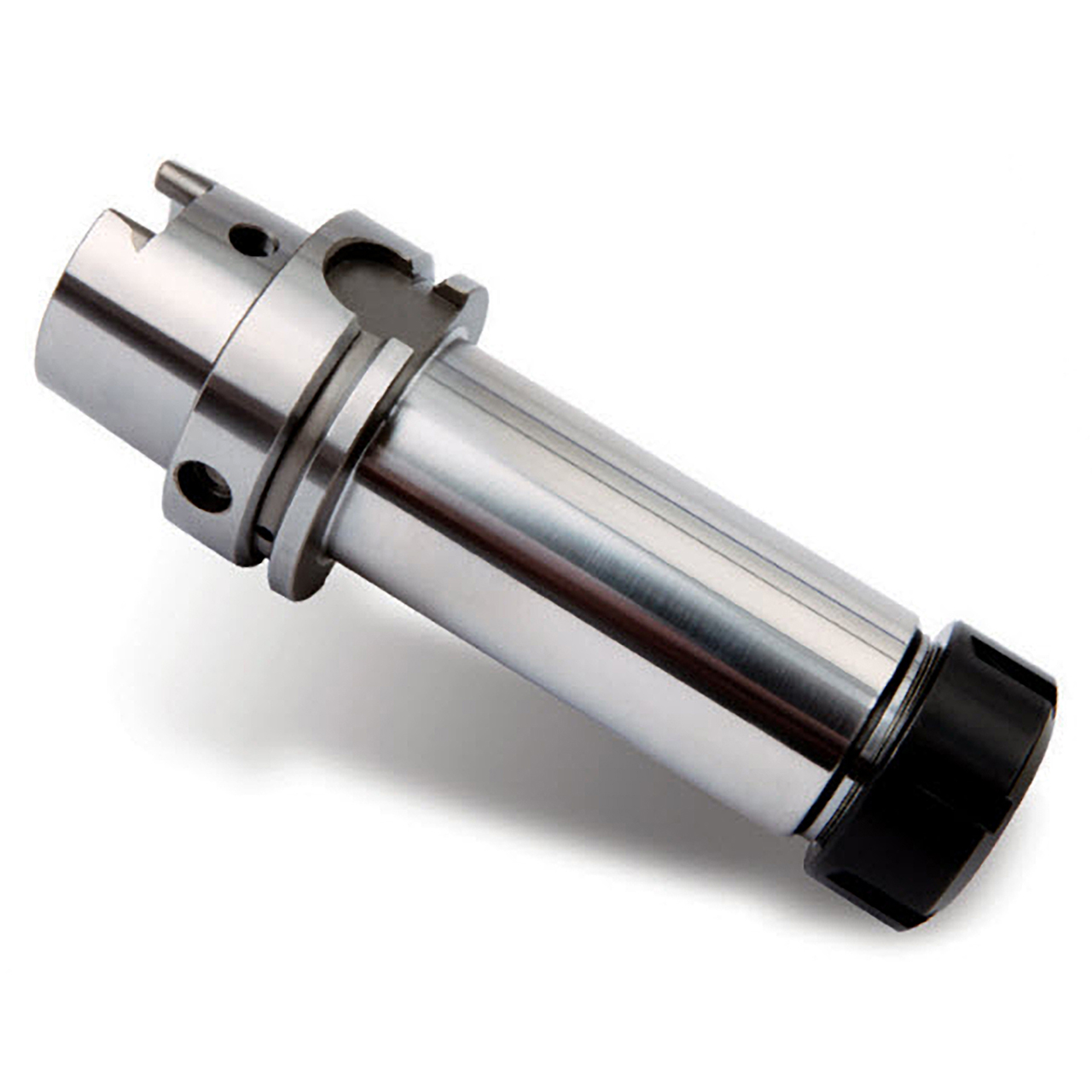

YG1 BQ016 | 63A Taper 0.078" - 0.787" Range x 1.969" Diameter x 3.940" Gage Length x 1.575" Minimum Functional Length x 2.295" Maximum Functional Length ER32 Dual Contact ER Collet Chuck

YG1 BQ016 | 63A Taper 0.078" - 0.787" Range x 1.969" Diameter x 3.940" Gage Length x 1.575" Minimum Functional Length x 2.295" Maximum Functional Length ER32 Dual Contact ER Collet Chuck

SKU: 55008296 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$273.73 $224.46
(You save $49.27)
Shipping: Calculated at Checkout

About This Item


Product Specifications
Manufacturer Part NumberBQ016
Taper Type63A
Clamping range0.078" - 0.787"
Body Diameter (Decimal Inch)1.969"
Body Diameter (mm)50.01mm
Gage Length (Decimal Inch)3.940"
Gage Length (mm)100.08mm
Minimum Functional Length (Decimal Inch)1.575"
Maximum Functional Length (Decimal Inch)2.295"
StyleHSK63A
G Value2.5
RPM25000
Coolant SystemAD
Collet SeriesER32
Product TypeDual Contact ER Collet Chuck
