Product Specifications

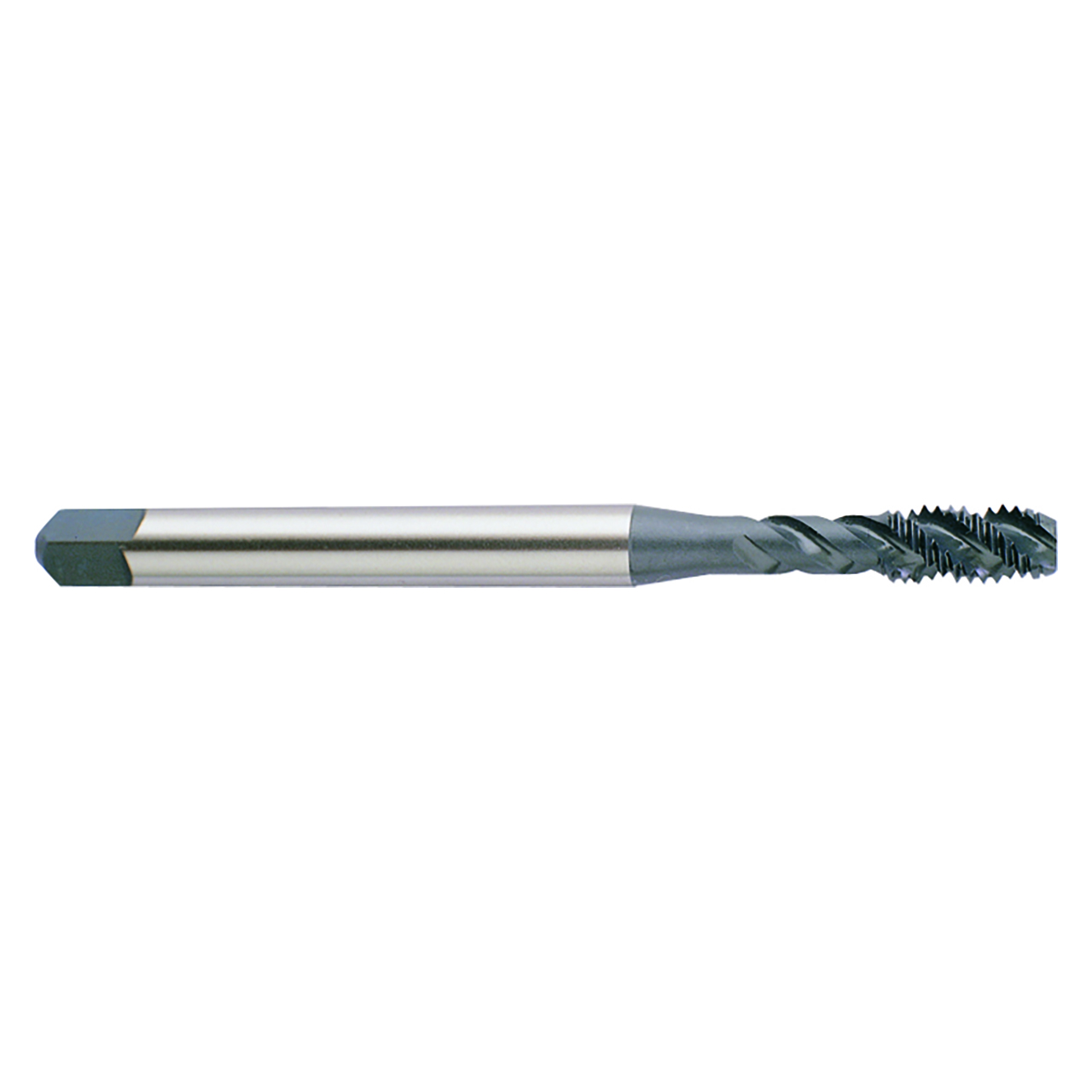

| Manufacturer Part Number | BT244 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.2780" |
| Thread Length (mm) | 7.06mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.27mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.1190" |
| Neck Diameter (mm) | 3.02mm |
| Drill Size (Decimal Inch) | 0.1324" |
| Drill Size (mm) | 3.36mm |
| Useable Length (Decimal Inch) | 0.7680" |
| Useable Length (mm) | 19.51mm |
| Thread Diameter (Inch) | M4 |
| Threads Per Inch | 0.7 TPI |
| Number of Flutes | 3 |
| Pitch Limit | D4 |
| Series | BT |
| Helix Angle | 45 Degree |
| Thread Series | M |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | 302A |
| Length/Diameter | 2.5xD |
| Shank Type | Square |
| Tap Type | Spiral Flute Tap |
