| Manufacturer Part Number | BV657 |
| Size | M18 |
| Pitch (TPI) | 2.5 TPI |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 4.0300" |
| Overall Length (mm) | 102.36mm |
| Thread Length (Decimal Inch) | 0.7870" |
| Thread Length (mm) | 19.99mm |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.5420" |
| Shank Diameter (mm) | 13.77mm |
| Square Size (Decimal Inch) | 0.4060" |
| Square Size (mm) | 13.77mm |
| Neck Diameter (Decimal Inch) | 0.5300" |
| Neck Diameter (mm) | 13.46mm |
| Drill Size (Decimal Inch) | 0.6192" |
| Drill Size (mm) | 15.73mm |
| Useable Length (Decimal Inch) | 2.2050" |
| Useable Length (mm) | 56.01mm |
| Length/Diameter | 2.5xD |
| Number of Flutes | 4 |
| Series | BV |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Coating | Hardslick |
| Material | HSSE-V3 |
| Helix Angle (Degree) | 45 Degree |
| Shank Type | Square |
| Trade Name | YG Tap Steel |
| Tap Type | Spiral Flute |
| Chamfer Type | Modified Bottoming |

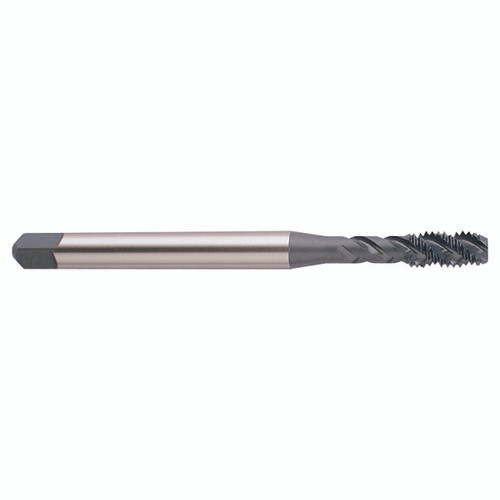

| Product Type | Spiral Flute Modified Bottom Tap |
