| Manufacturer Part Number | BW515 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (mm) | 12.00mm |
| Thread Size | M12 |
| Pitch | 1.5 TPI |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Neck Diameter (mm) | 8.99mm |
| Useable Length (Decimal Inch) | 2.0670" |
| Useable Length (mm) | 52.50mm |
| Drill Size (Decimal Inch) | 0.4187" |
| Drill Size (mm) | 10.64mm |
| Number of Flutes | 2 |
| Pitch Limit | D5 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Bright |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

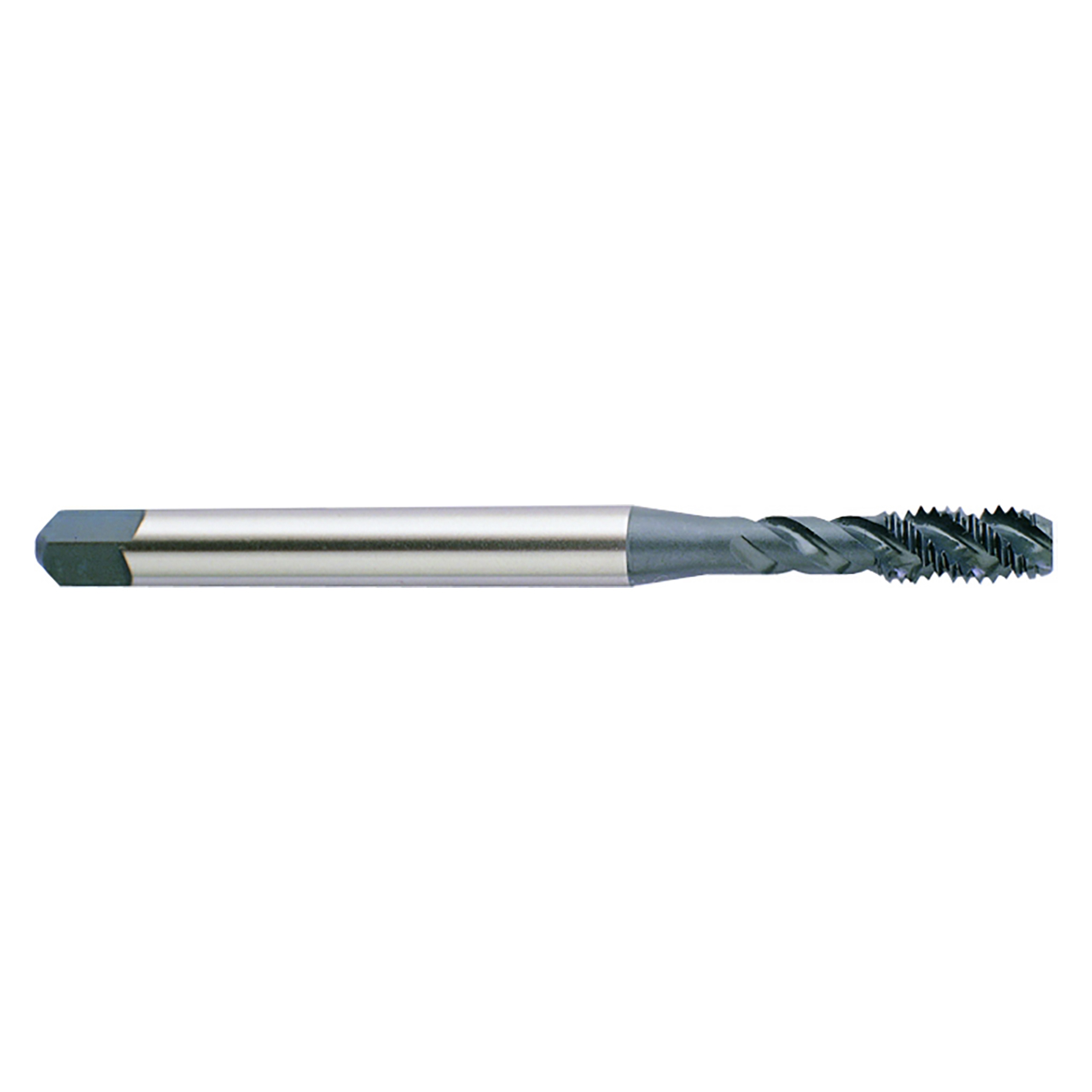

| Product Type | Spiral Flute Thread Tap |
