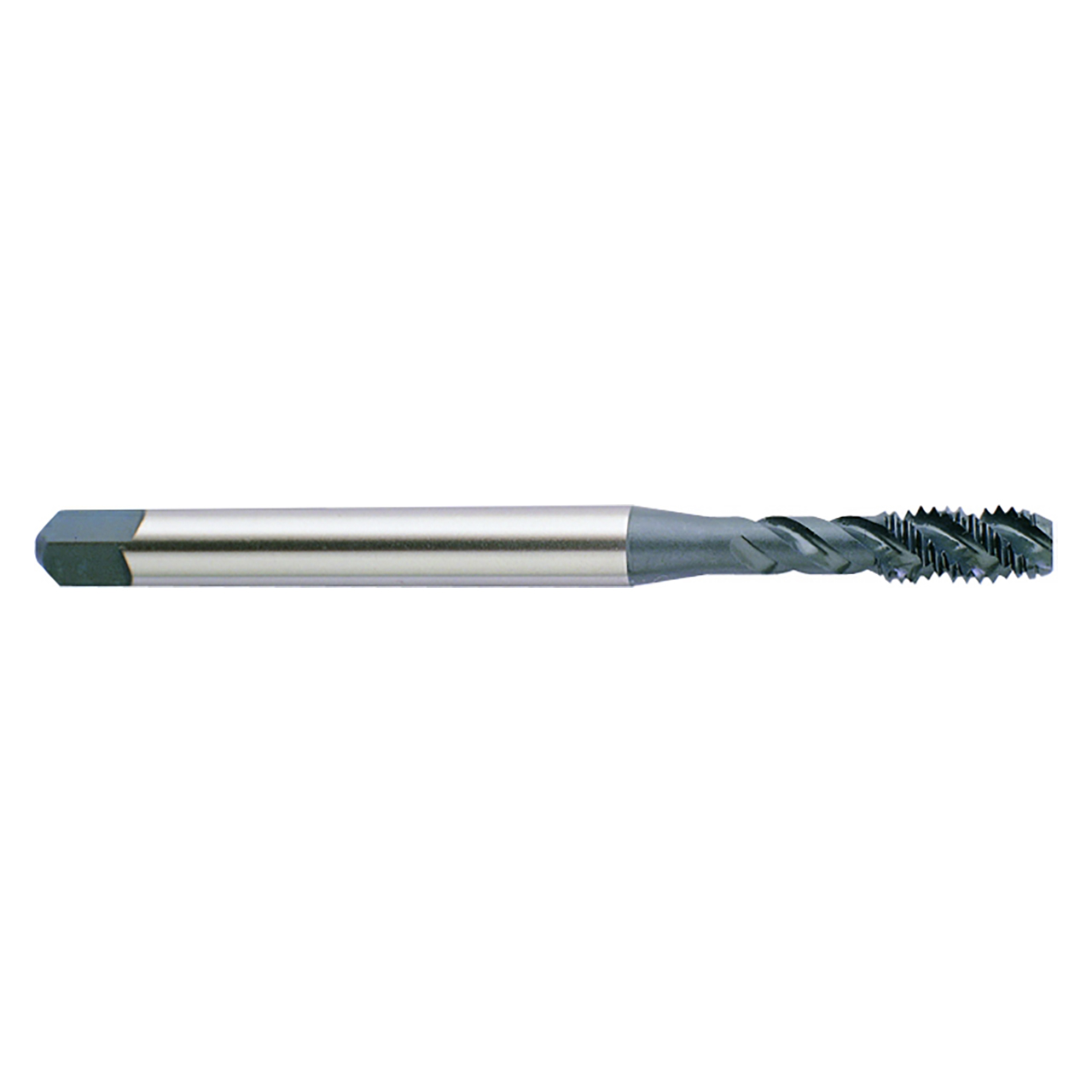

YG1 BX244 | M4x0.7 Thread x 0.1575" Diameter x 0.1680" Shank x 2.1300" OAL 2 Flute Hardslick Coated HSSE-V3 Spiral Flute Thread Tap

$11.28
SKU:
15007252
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
# Manufacturer NumberBX244
Diameter (Decimal Inch)0.1575"
Diameter (mm)4.00mm
Thread SizeM4
Pitch0.7 TPI
Shank Diameter (Decimal Inch)0.1680"
Shank Diameter (mm)4.27mm
Overall Length (Decimal Inch)2.1300"
Overall Length (mm)54.10mm
Thread Length (Decimal Inch)0.2780"
Thread Length (mm)7.06mm
Square Length (Decimal Inch)0.2500"
Square Length (mm)6.35mm
Square Size (Decimal Inch)0.1310"
Square Size (mm)3.33mm
Neck Diameter (Decimal Inch)0.1190"
Neck Diameter (mm)0.00mm
Useable Length (Decimal Inch)0.7680"
Useable Length (mm)19.51mm
Drill Size (Decimal Inch)0.1324"
Drill Size (mm)3.36mm
Number of Flutes2
Pitch LimitD4
Helix Angle (Degree)50 Degree
Coolant ThroughNo
Shank TypeSquare
Finish / CoatingHardslick
MaterialHSSE-V3
Chamfer Length2P-3P
Chamfer TypeModified Bottoming
Product TypeSpiral Flute Thread Tap
