| Manufacturer Part Number | D1631006 |
| Diameter (Decimal Inch) | 0.0938" |
| Diameter (Inch) | 3/32" |
| Diameter (mm) | 2.38mm |
| Shank Diameter (Decimal Inch) | 0.0938" |
| Shank Diameter (Inch) | 3/32" |
| Shank Diameter (mm) | 2.38mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Flute Length (Decimal Inch) | 1.2500" |
| Flute Length (Inch) | 1-1/4" |
| Flute Length (mm) | 31.75mm |
| Point Length (Decimal Inch) | 0.0194" |
| Point Length (mm) | 0.49mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Oxide |
| Material | HSS |
| Application | P |
| Cutting Direction | Right |

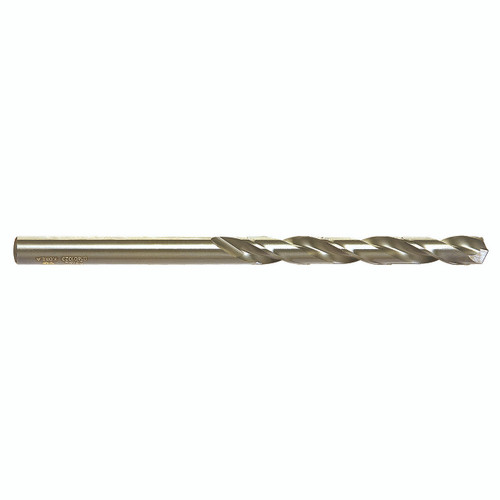

| Product Type | Aircraft Extension Drill |
