Product Specifications
| EDP Number | D1C90143 |
| Center Drill Size | #3 |
| Pilot Length (Decimal Inch) | 0.1094" |
| Pilot Length (Inch) | 7/64" |
| Pilot Length (mm) | 2.78mm |
| Pilot Diameter (Decimal Inch) | 0.1094" |
| Pilot Diameter (Inch) | 7/64" |
| Pilot Diameter (mm) | 2.78mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Point Length (Decimal Inch) | 0.0316" |
| Point Length (mm) | 0.80mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 60 Degree |
| Number of Flutes | 2 |
| Series | D1C90 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | HSS (M2) |
| Hole Tolerance | k12 |
| Application | P |
| Cutting Direction | Right Hand |
| Length Type | Regular |

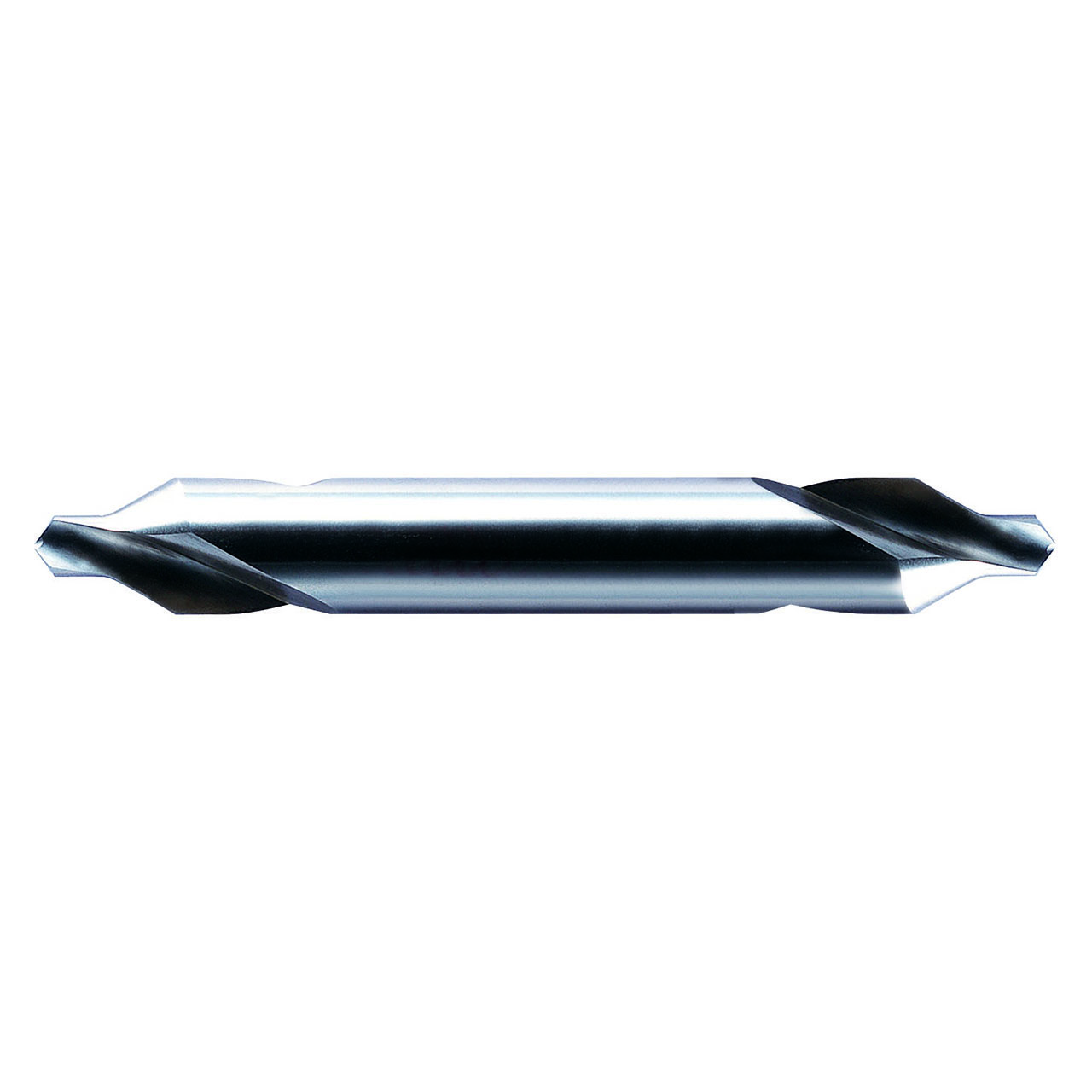

| Product Type | Combination Drill & Countersink |
