| Manufacturer Part Number | D1GP182031 |
| Diameter (Decimal Inch) | 0.4844" |
| Diameter (Inch) | 31/64" |
| Diameter (mm) | 12.30mm |
| Shank Diameter (Decimal Inch) | 0.4844" |
| Shank Diameter (Inch) | 31/64" |
| Overall Length (Decimal Inch) | 5.8750" |
| Overall Length (Inch) | 5-7/8" |
| Overall Length (mm) | 149.23mm |
| Point Length (Decimal Inch) | 0.1003" |
| Point Length (mm) | 2.55mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | TiN |
| Material | HSS |
| Cutting Direction | Right |
| Hole Tolerance | h8 |

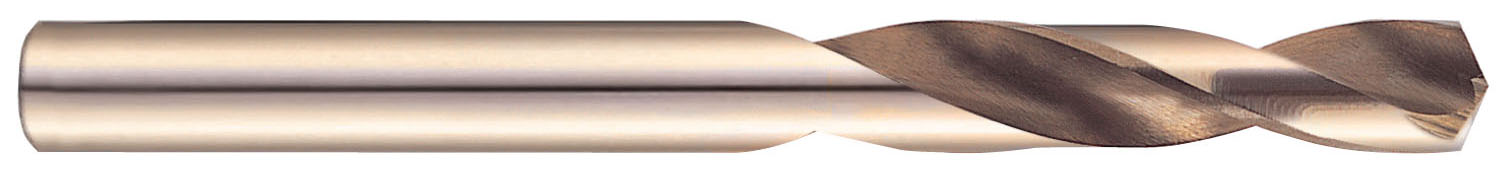

| Product Type | Jobber Length Drill Bit |
