| Manufacturer Part Number | D2148145 |
| Size (Wire) | #45 |
| Size (Inch) | 5/61" |
| Size (Decimal Inch) | 0.082" |
| Size (mm) | 2.08mm |
| Shank Diameter (Inch) | 5/61" |
| Shank Diameter (Decimal Inch) | 0.082" |
| Shank Diameter (mm) | 2.08mm |
| Flute Length (Inch) | 3/4" |
| Flute Length (Decimal Inch) | 0.750" |
| Flute Length (mm) | 19.05mm |
| Overall Length (Inch) | 1-3/4" |
| Overall Length (Decimal Inch) | 1.750" |
| Overall Length (mm) | 44.45mm |
| Point Length (Decimal Inch) | 0.017" |
| Point Length (mm) | 0.43mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Number of Flutes | 2 |
| Series | D2148 |
| Blank Standard | ANSI |
| Coating | Bright |
| Material | HSS |
| Hole Tolerance | ANSI |
| Cutting Direction | Right Hand |

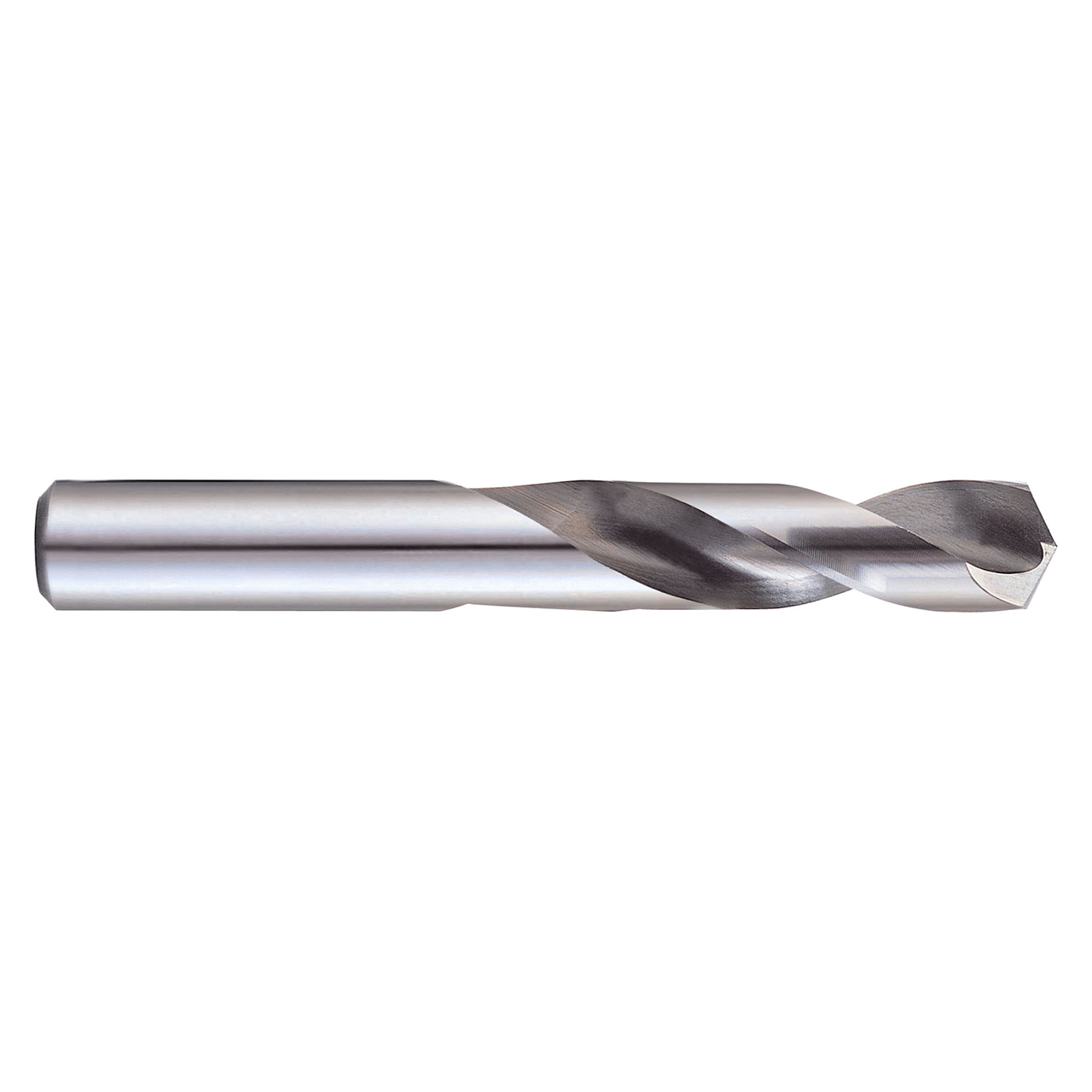

| Product Type | Screw Machine Length Drill Bit |
