| Manufacturer Part Number | D2166 |
| Thread Size | #4 |
| Thread Size (Decimal Inch) | 0.112" |
| Thread Size (mm) | 2.84mm |
| Pitch | 40 |
| Thread Series | UNC |
| Pitch Limit | H6 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 1.880" |
| Overall Length (mm) | 47.75mm |
| Thread Length (Decimal Inch) | 0.236" |
| Thread Length (mm) | 5.99mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.077" |
| Neck Diameter (mm) | 1.96mm |
| Neck Length (Decimal Inch) | 0.563" |
| Neck Length (mm) | 14.30mm |
| Drill Size (Decimal Inch) | 0.089" |
| Drill Size (mm) | 2.27mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58mm x 2.79mm |
| Usable Length (Decimal Inch) | 0.563" |
| Usable Length (mm) | 14.30mm |
| Shank Type | Square |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 2 |
| Blank Standard | 302A |
| Coating | Hardslick |
| Material | HSS-E |
| Series | D2 |

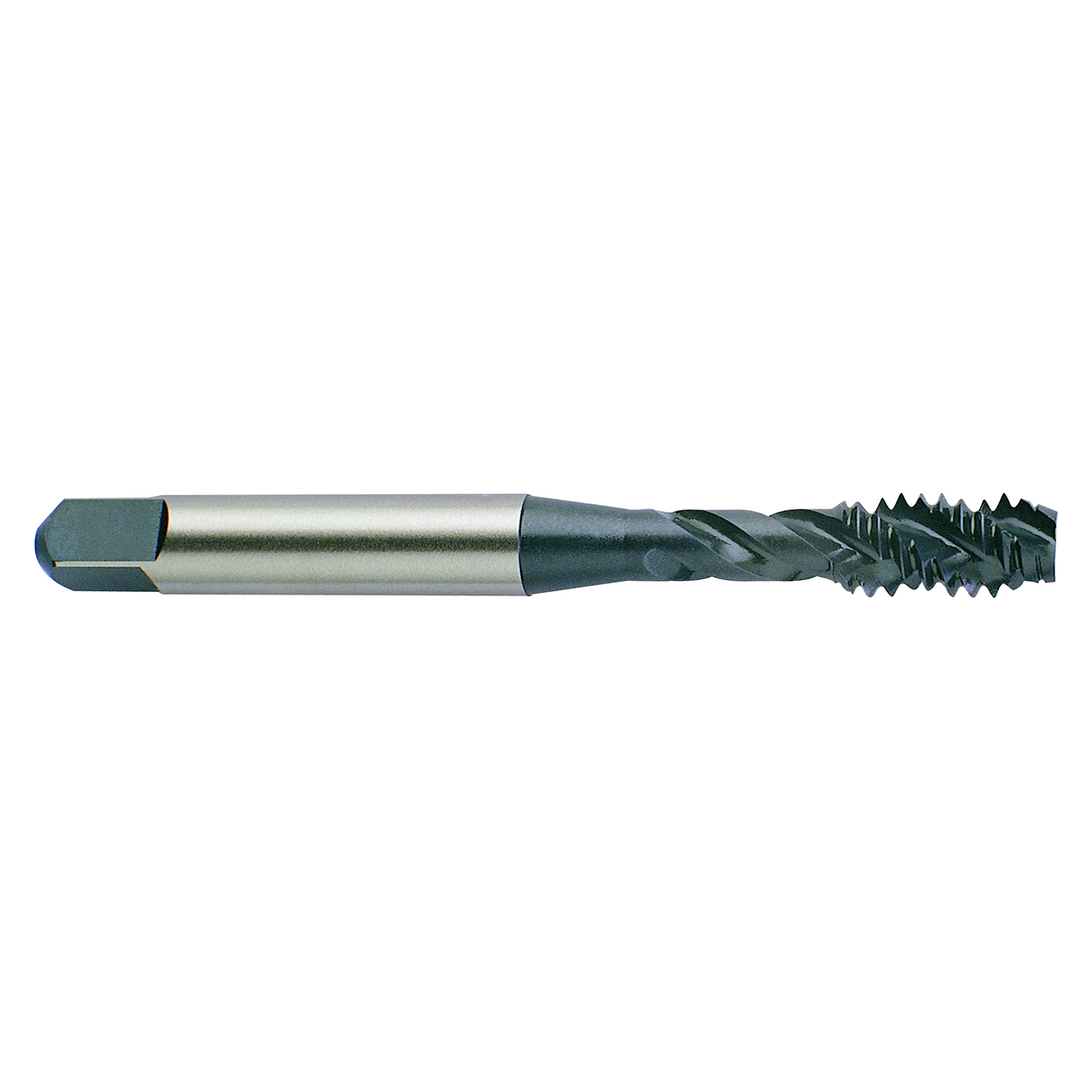

| Product Type | Spiral Flute Pipe Tap |
